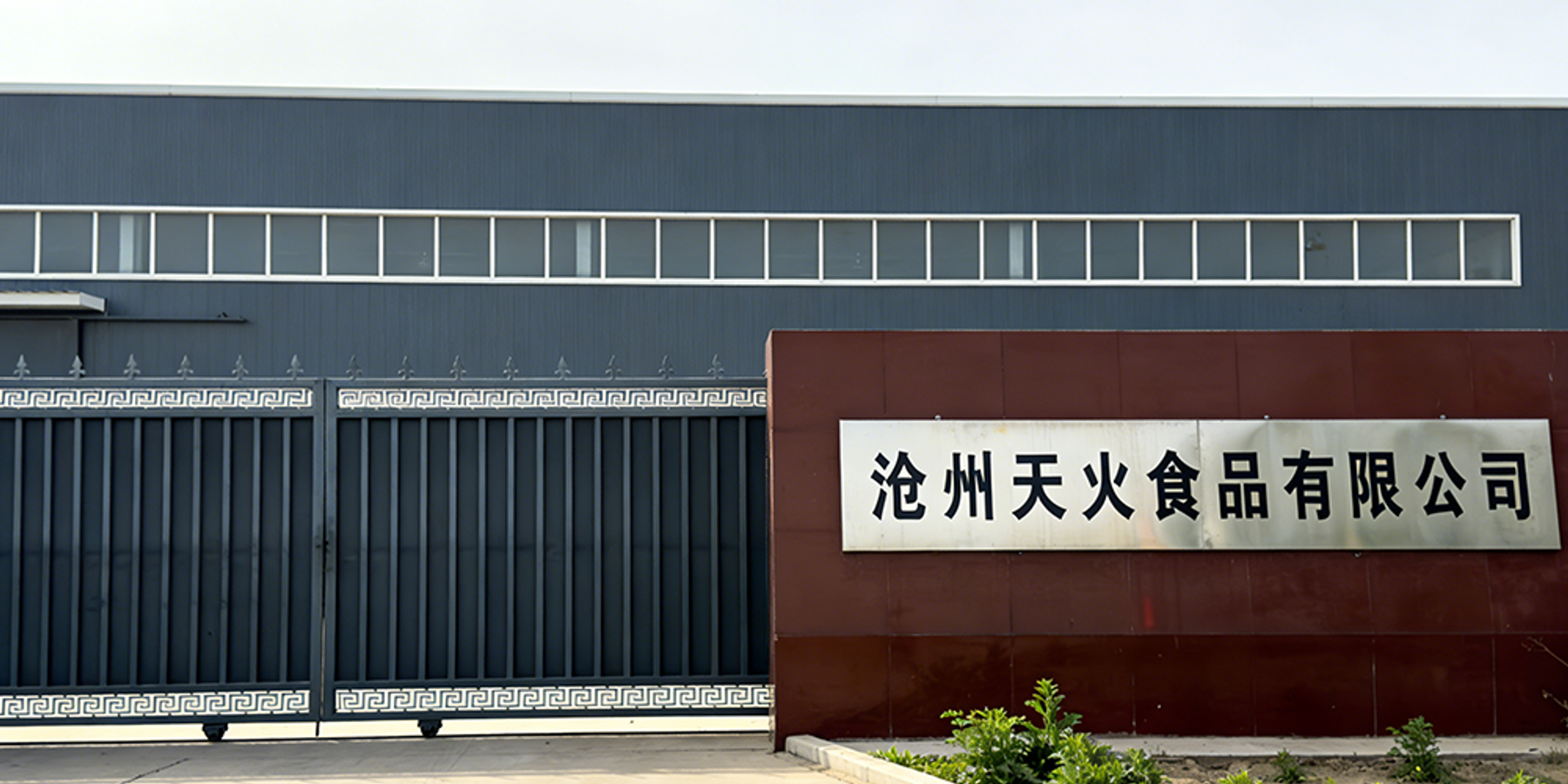

Cangzhou Tianhuo Food Company
Address:
Hebei,China
Customer Requirement:
Capable of grinding herbs such as kudzu root, sticky dried mulberries, cistanche, polygonatum, asparagus cochinchinensis, and prepared rehmannia to a fine 60-mesh powder (about 0.25 mm), this machine delivers continuous, high-efficiency operation without sieve blockage.
DoDoShark Solution:
- Primary coarse crushing followed by tooth-claw grinding.

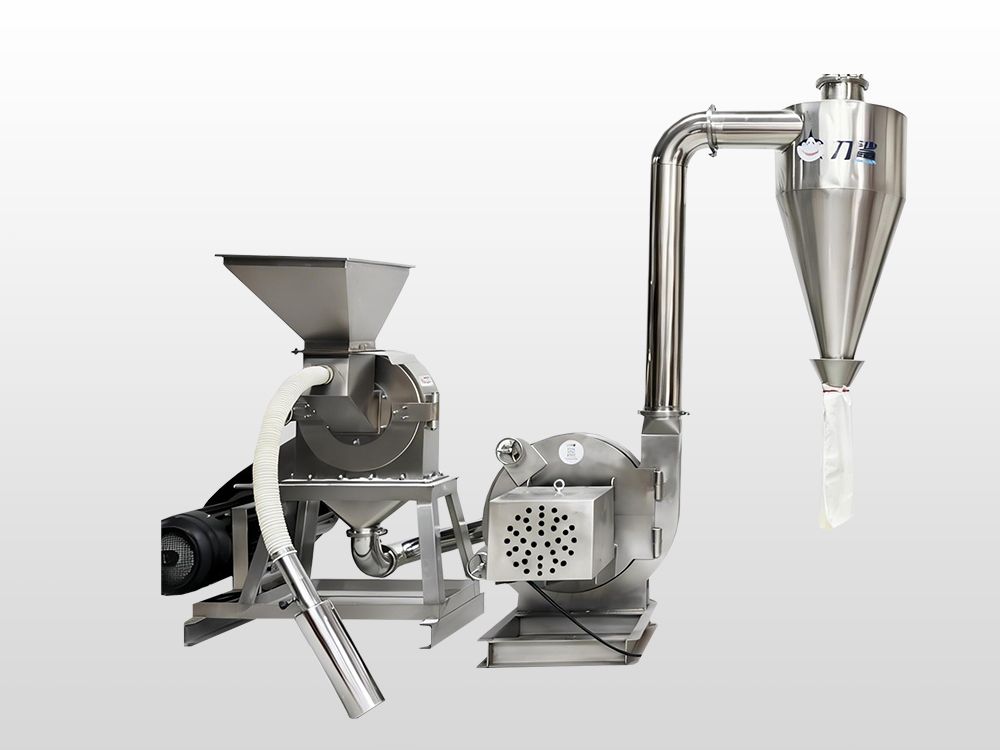

- DoDoShark 304 Stainless Steel Grinder
- Model 70 + 30 kW Motor
- High-pressure Centrifugal Fan
- Air Cooler to reduce material temperature
Workflow & Steps:
- Step 1: Use a Model 500 coarse crusher to break raw materials into small granules.
- Step 2: Use a variable-speed conveyor belt for uniform feeding into the grinder.
- Step 3: Use the DoDoShark Model 70 high-efficiency grinder for rapid pulverization.
- Step 4: Filter and screen compliant powder through a Cyclone and Vibrating Screen.
- Step 5: Non-compliant powder is automatically returned to the grinder for re-processing.
- Dust Collection: Utilizes a microfiber 6-bag dust collector to ensure a clean workshop environment.
Summary:
DoDoShark professionally designed a high-efficiency and durable 60-mesh fine powder production line for grinding viscous Chinese medicinal materials. Ultimately, the production line achieved an output of 500 kg/h, meeting the customer's requirements with an exceptional cost-performance ratio.
