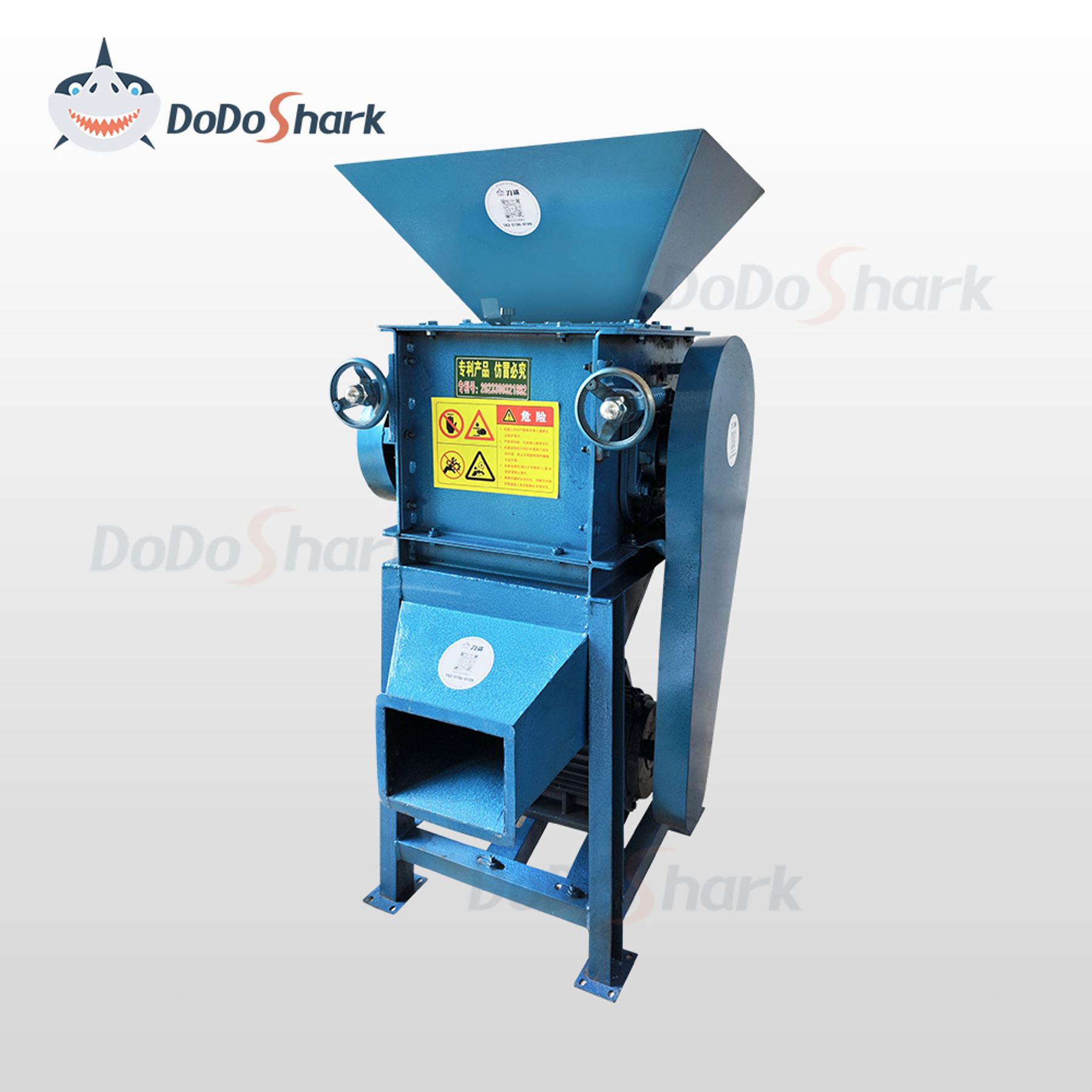

DoDoShark Agricultural Double Roll Crusher consists of wear-resistant rollers, a power drive system, an adjustment mechanism, and sealing protective components. Specifically designed for agricultural material processing, this roller-type crushing equipment offers gentle crushing and ensures a uniform output. It is suitable for grinding agricultural materials such as grains, feed raw materials, organic fertilizers, and straw pellets. The grinding particle size can be controlled by adjusting the roller gap and rotation speed. It features high grinding efficiency with minimal over-pulverization, and is compatible with continuous processing of various agricultural raw materials of different hardness levels. The equipment utilizes two rollers rotating towards each other at a constant speed, applying extrusion and shear forces to achieve gentle material grinding. This ensures smooth discharge without clogging, providing high-efficiency and stable grinding for agricultural materials.

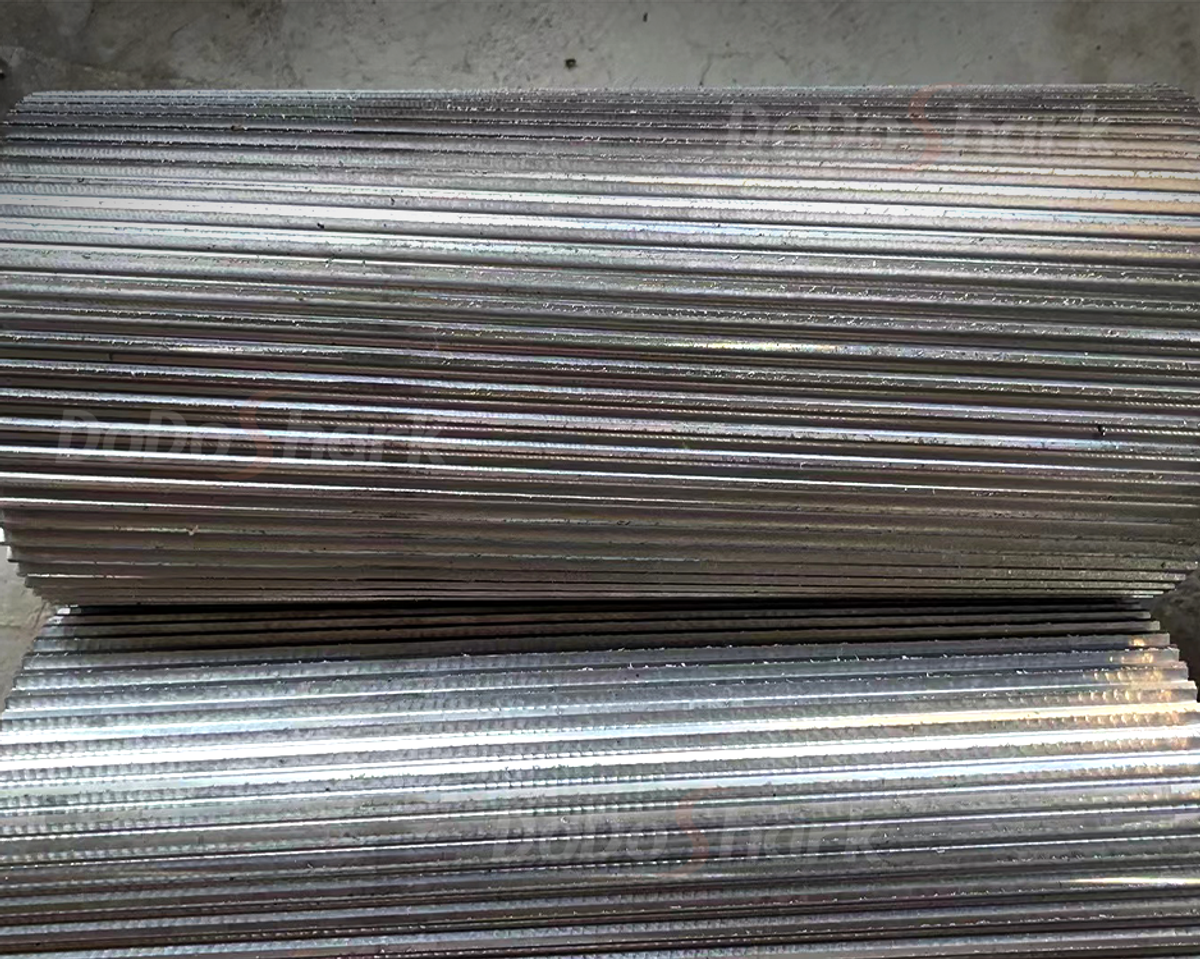

DoDoShark specialized alloy pressure rollers increase service life by more than 3 times compared to ordinary steel rollers.

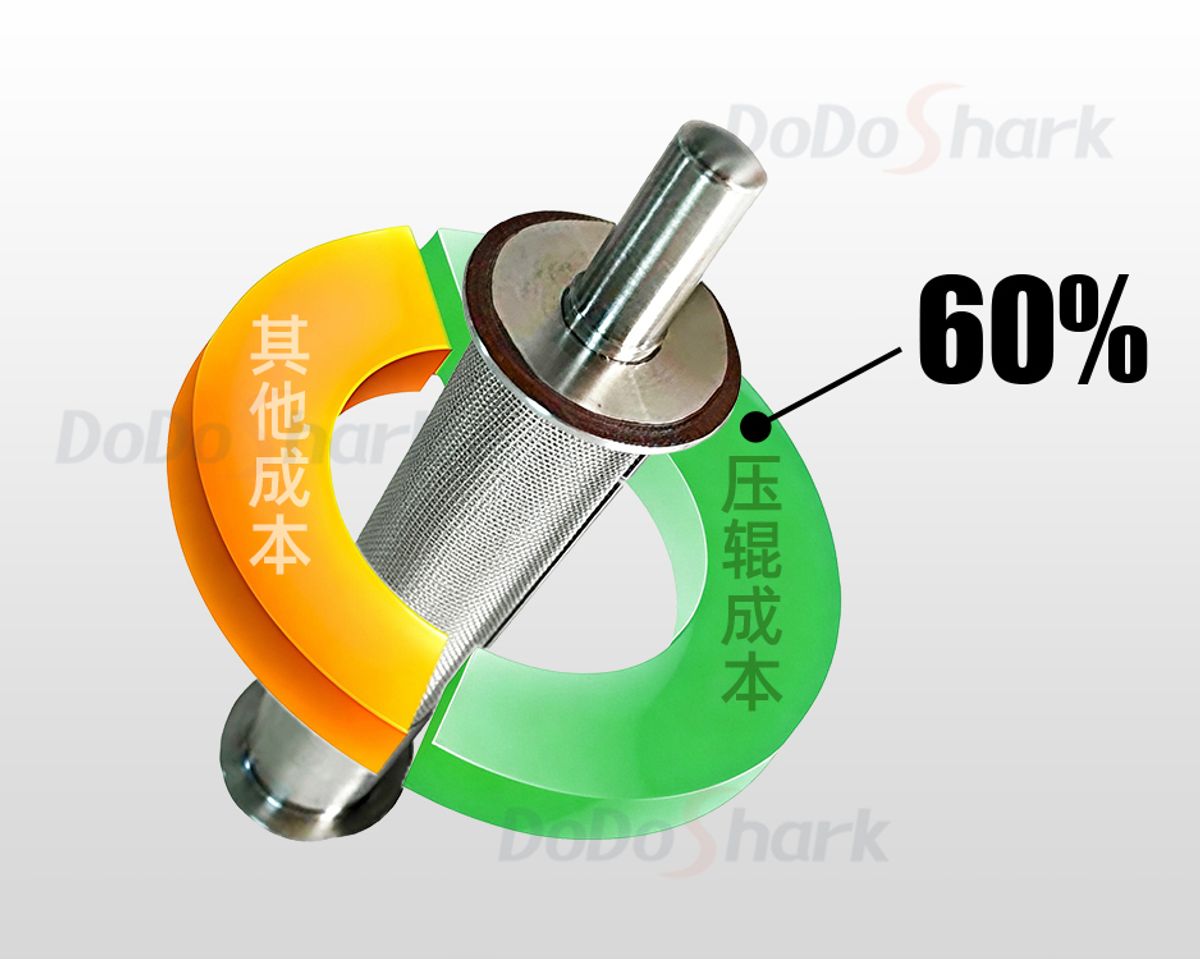

Pressure rollers account for 60% of the total machine cost, high-quality materials ensure a longer lifespan.

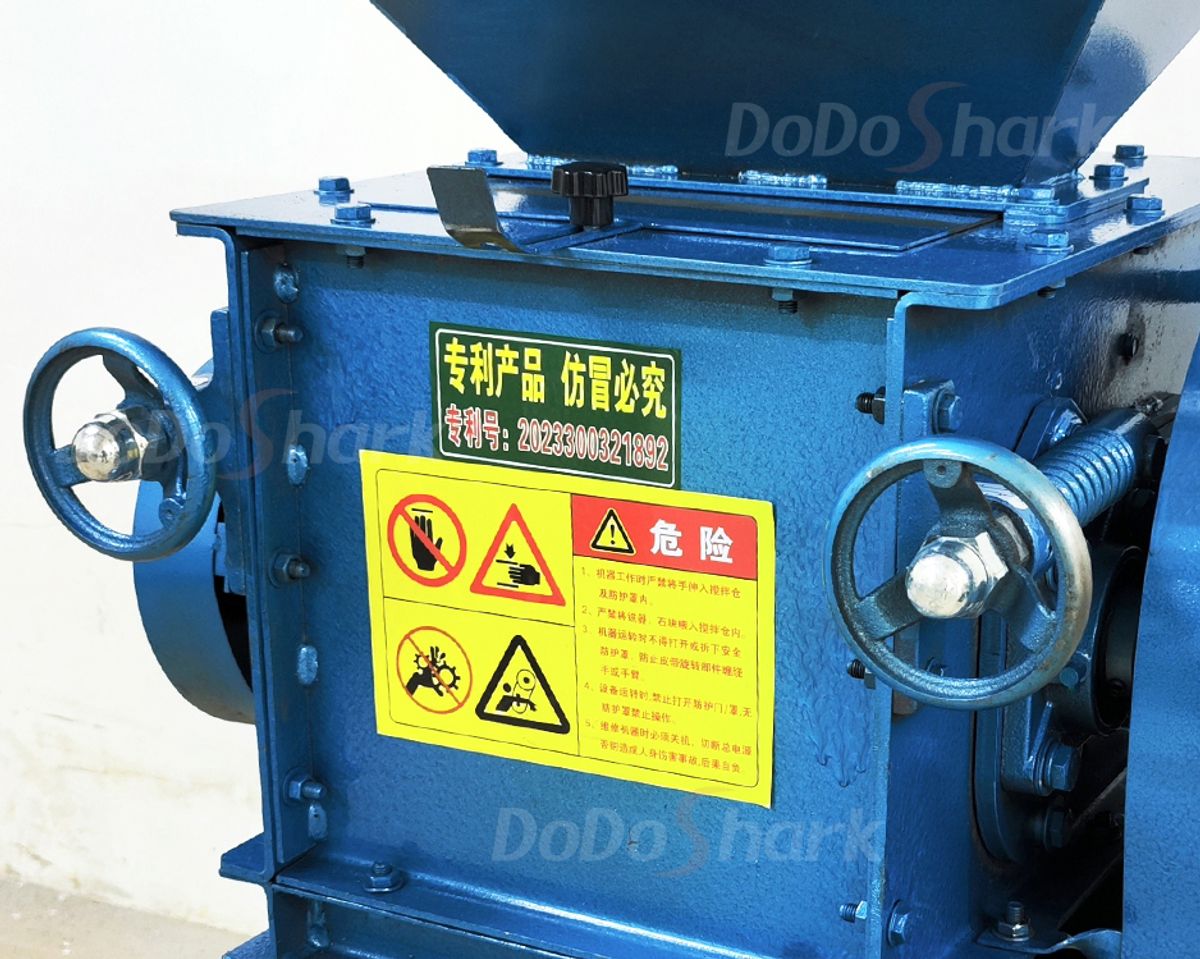

The new model supports dual-side adjustment of the roller gap for fast and more uniform discharge.

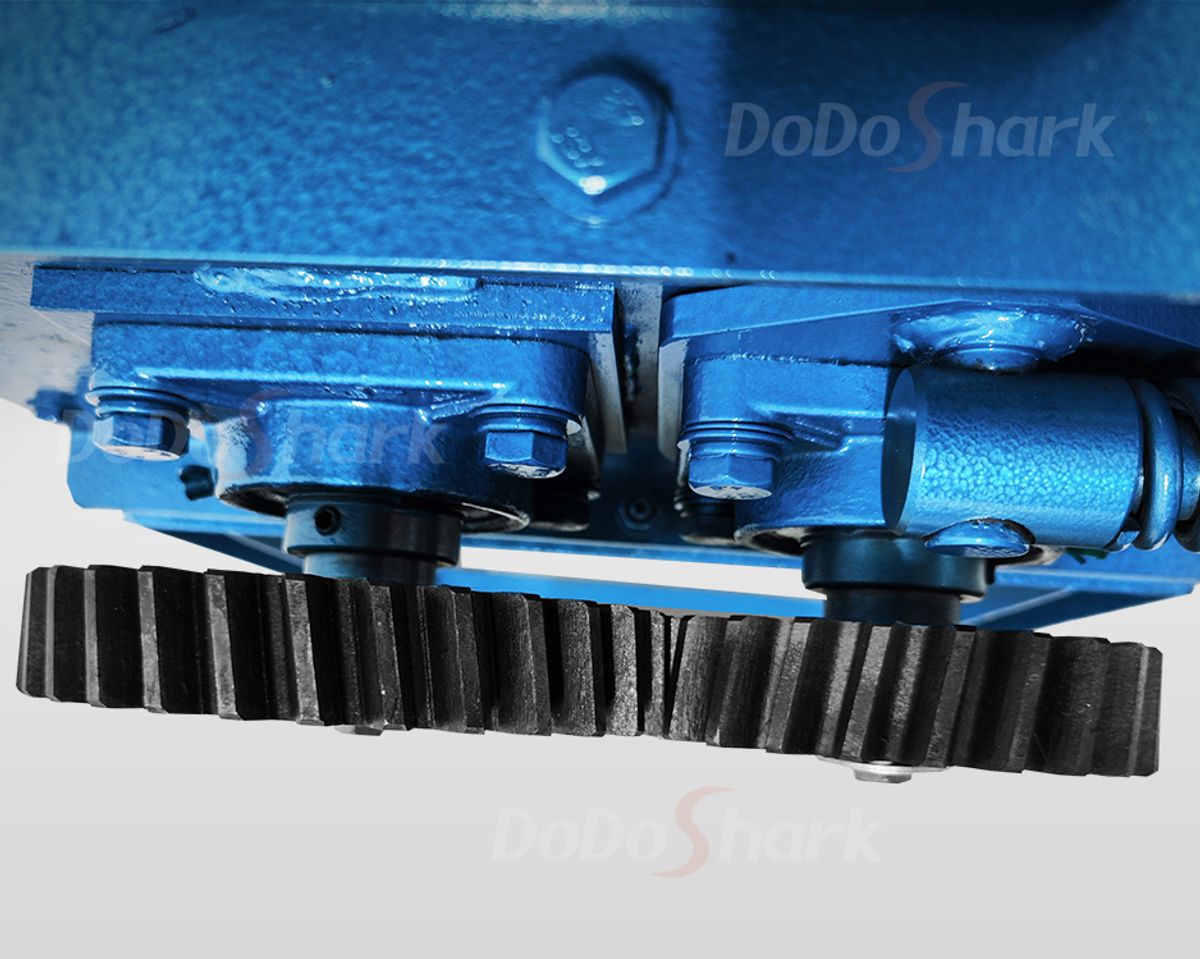

The new model utilizes helical gear drives, reducing noise levels by 50%.

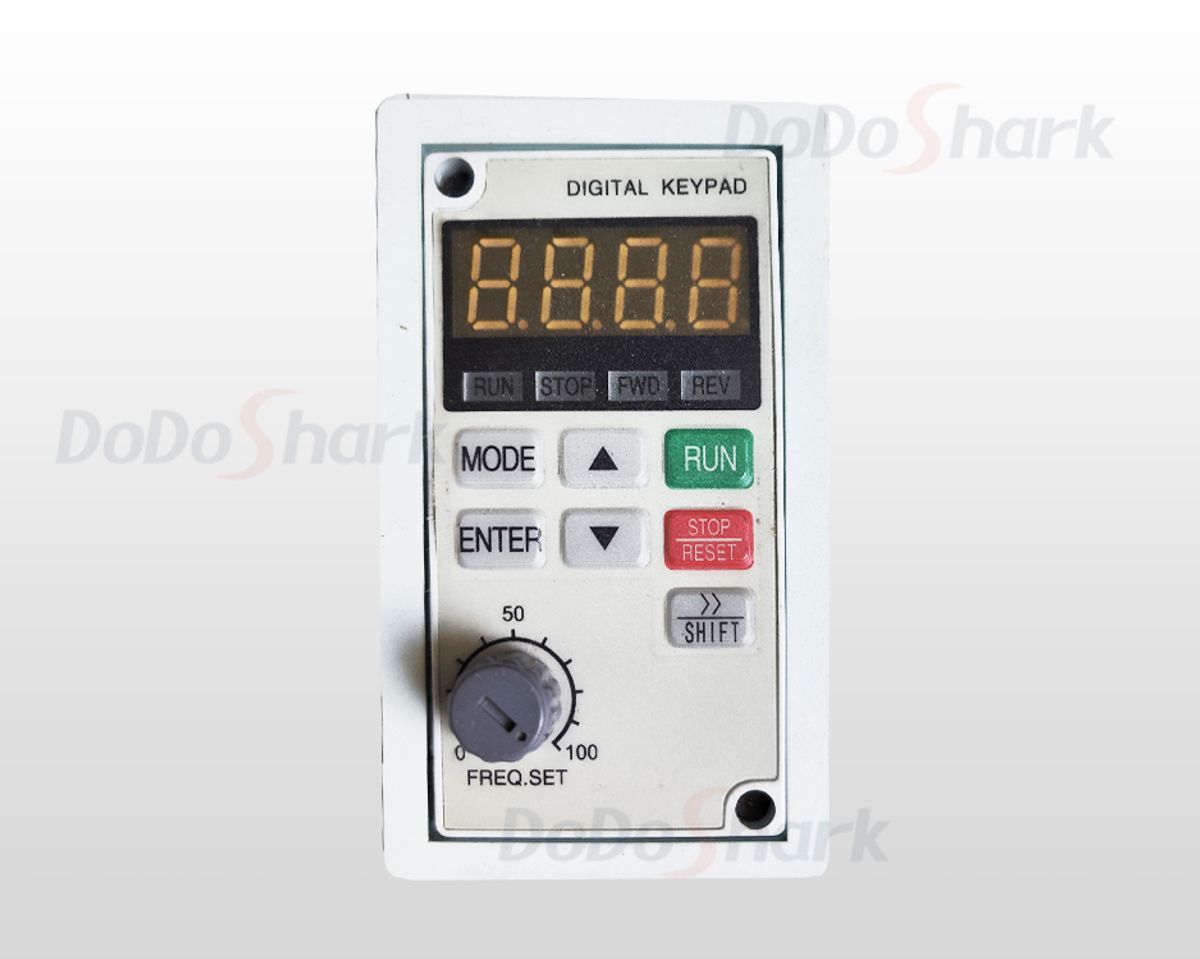

Optional dynamic speed control models, up to 720 RPM, are available to adapt to specialized material processing.

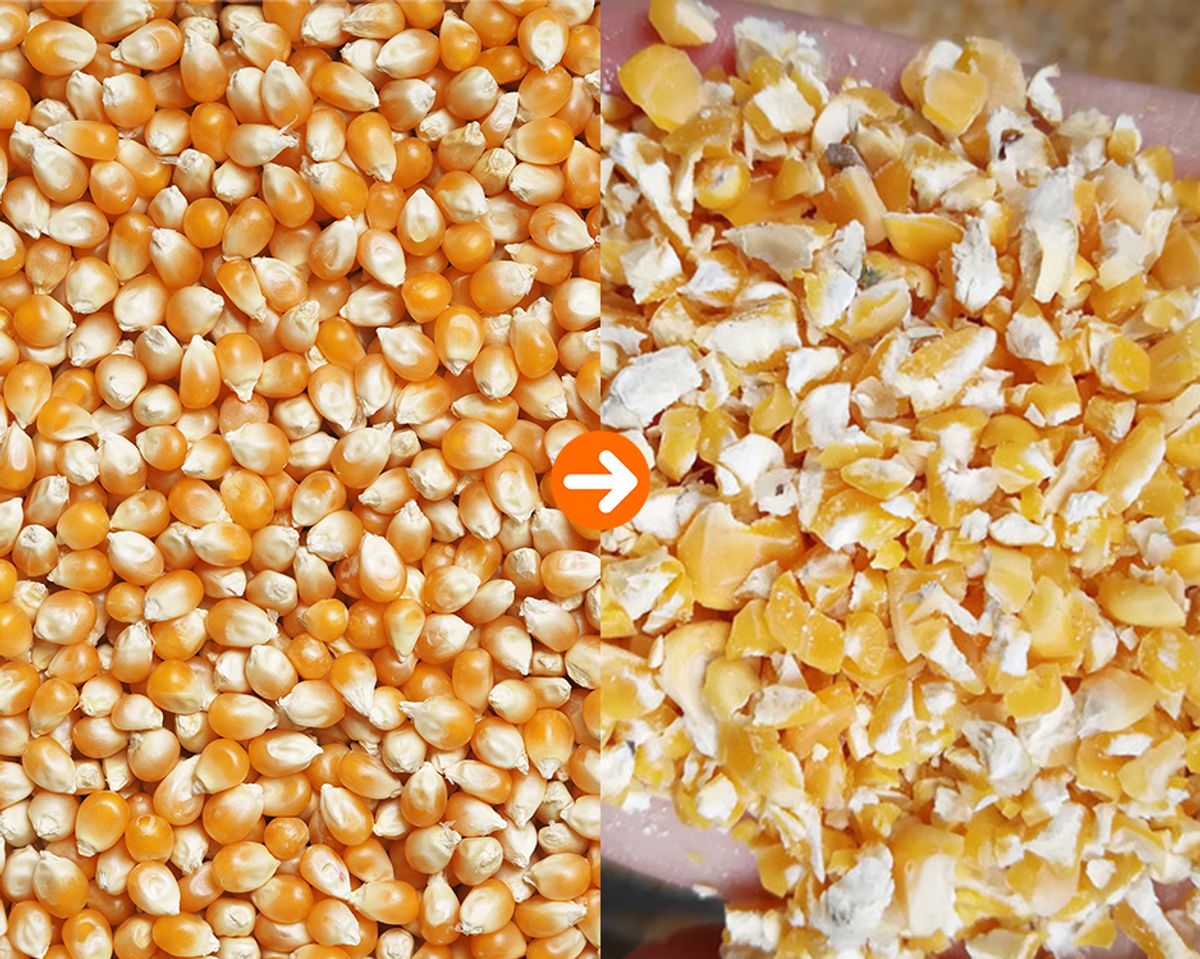

Crushing materials into 2-8 fragments or smaller. Brewing, poultry farming, sheep farming, crab feeding, food processing, etc.
Pressing materials into a flat shape. Flattening oats, red beans, etc.

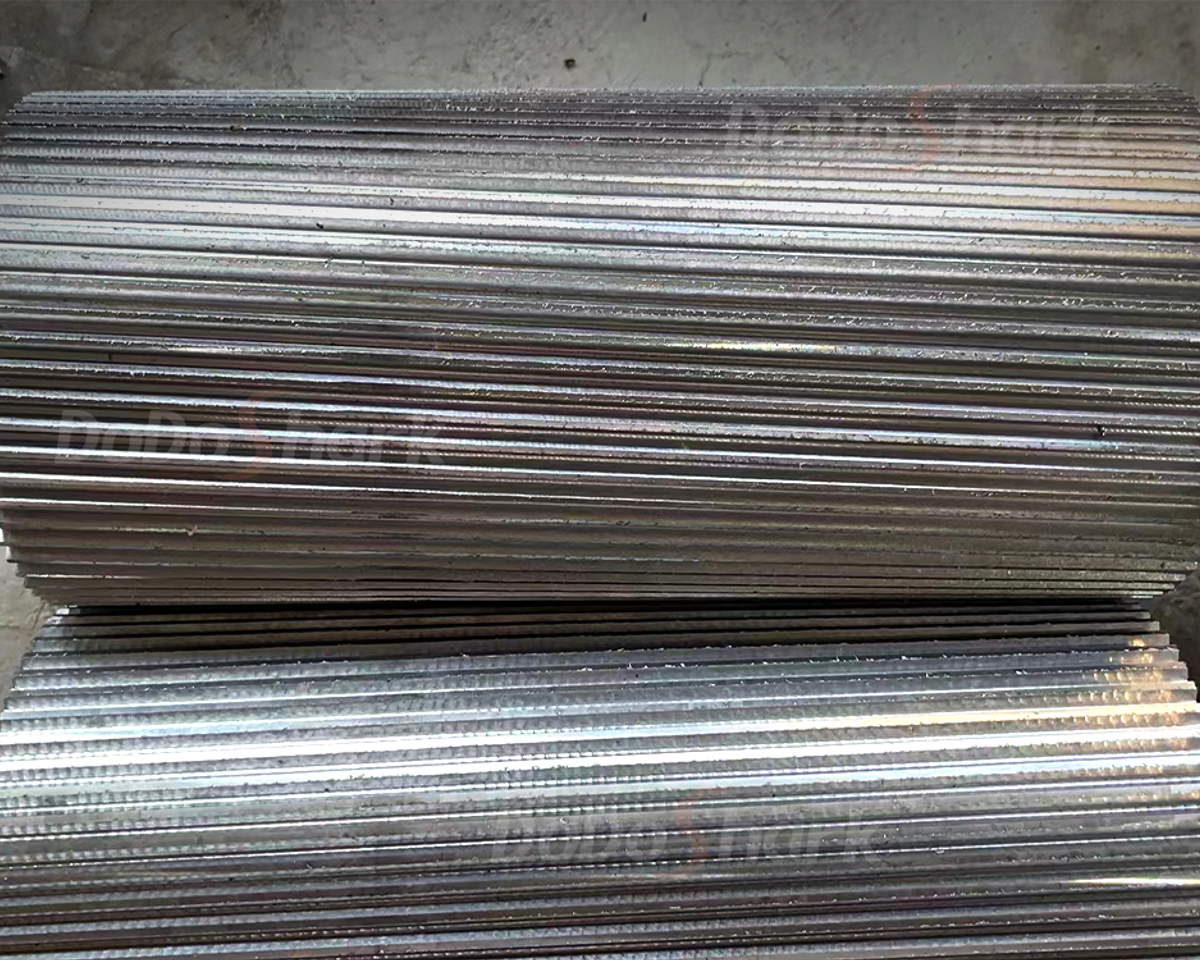

DoDoShark selects high-hardness manganese alloy rollers which are hard and wear-resistant.

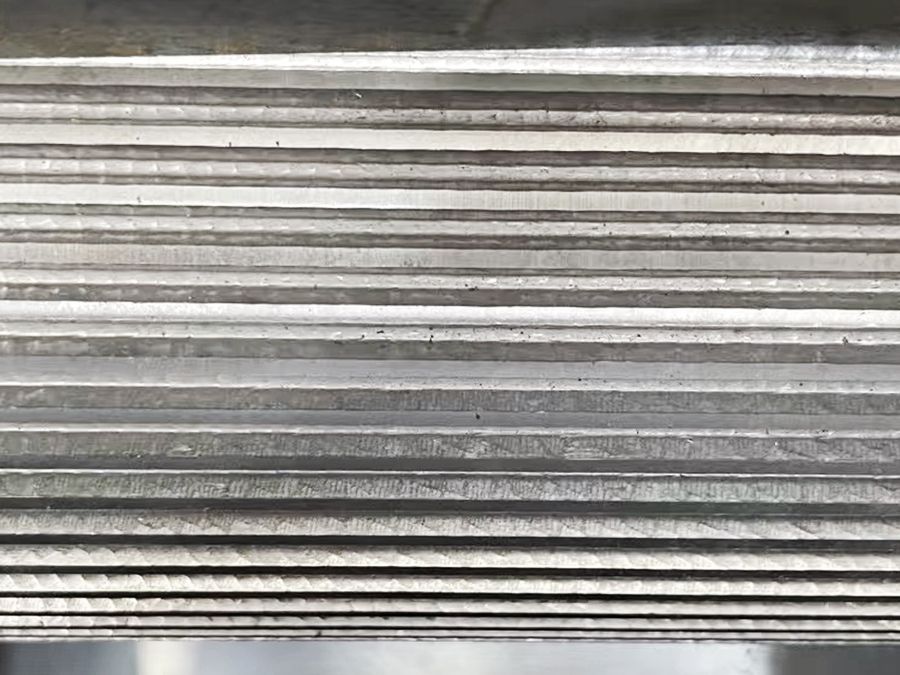

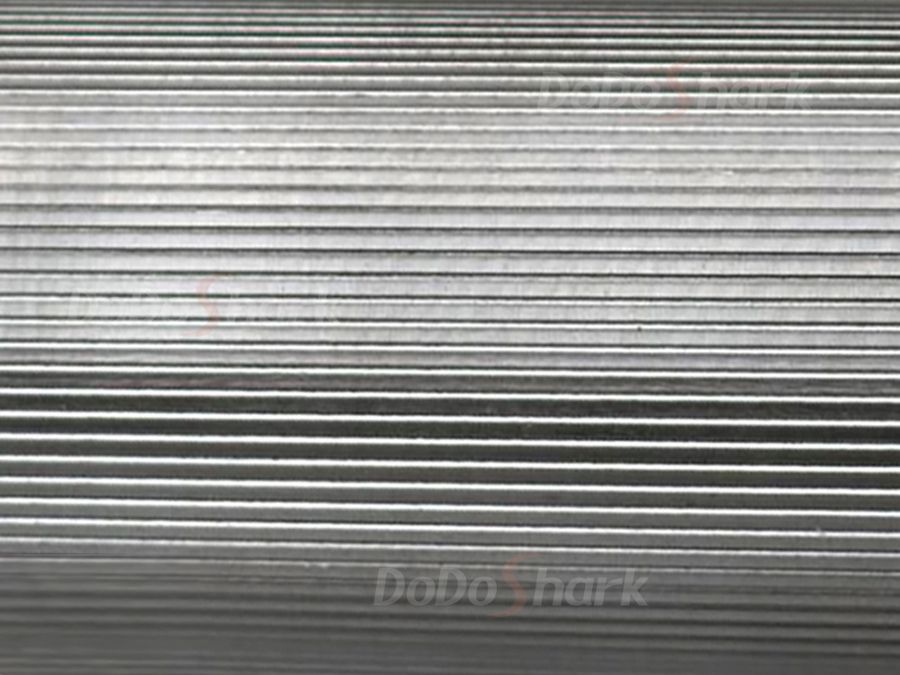

Suitable for large-diameter materials like corn, soybeans, and shells.
Suitable for small-diameter materials like sorghum, rapeseed, and noodle scraps.

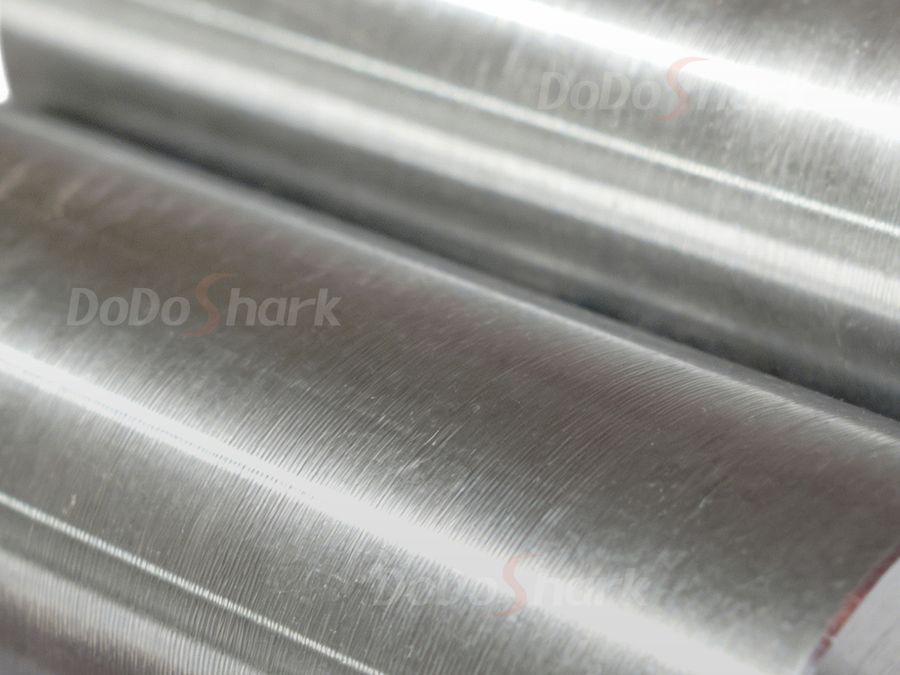

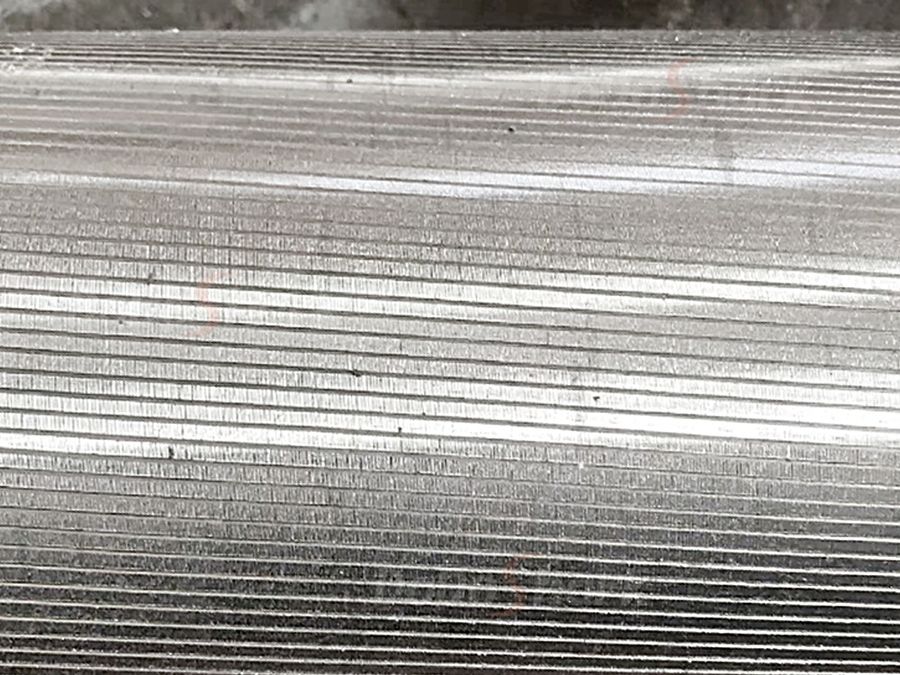

Suitable for flattening materials like red beans and oats.
Suitable for flattening materials with high stickiness or moisture content.
Model Parameter Description——Model：14-30 14：Press Roller Diameter (D) 30：Press Roller Length(L) The larger the diameter (D) and length (L)， The higher the output and efficiency.
| Model | Roller Diameter Length(cm) | Output: Corn/Sorghum(kg/h) | Power(kw) | Net Weight(kg) | Dimensions(cm) |
|---|---|---|---|---|---|

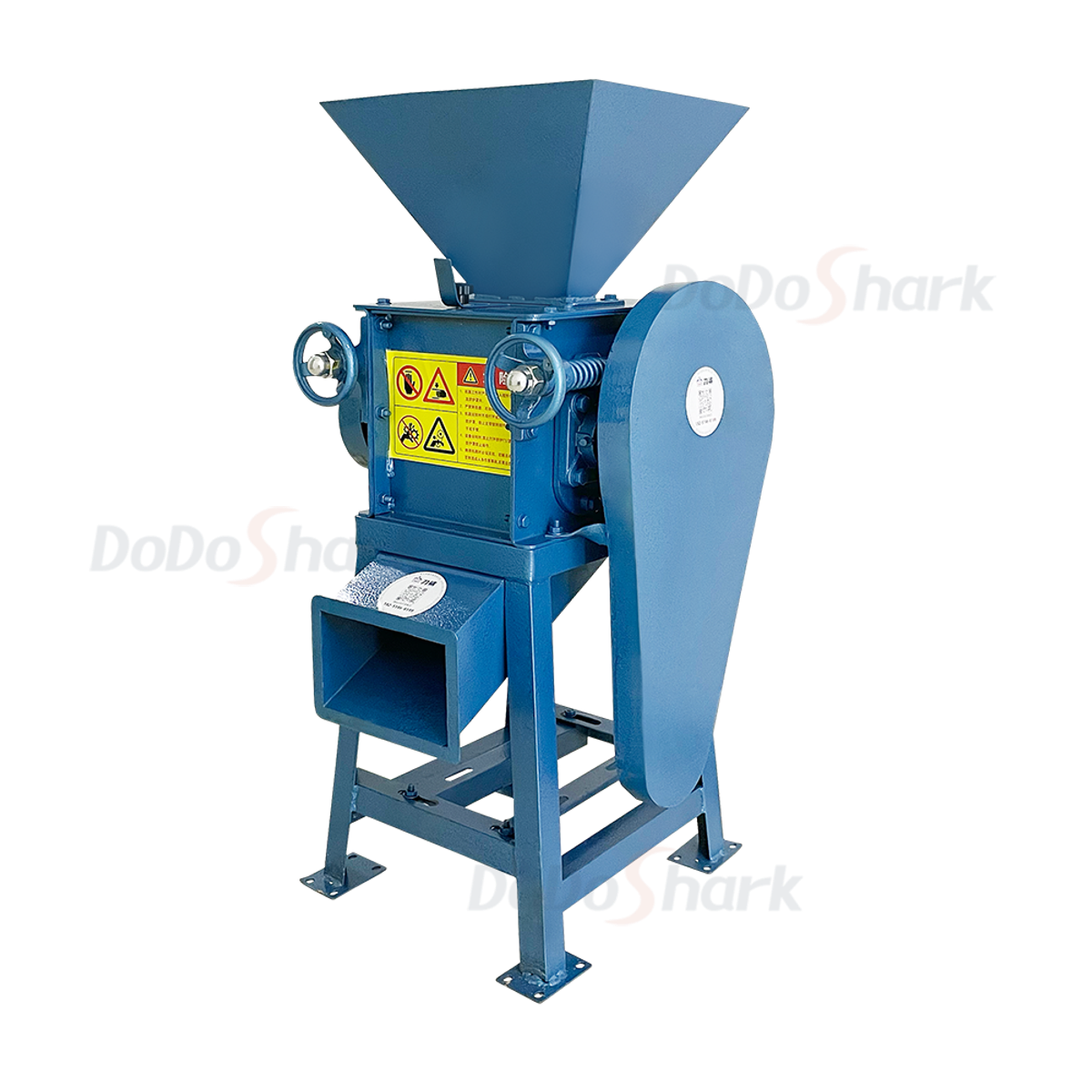

| M12-22 | 12*22 | 1t/250kg | 2.2 | 55 | 46*50*95 |

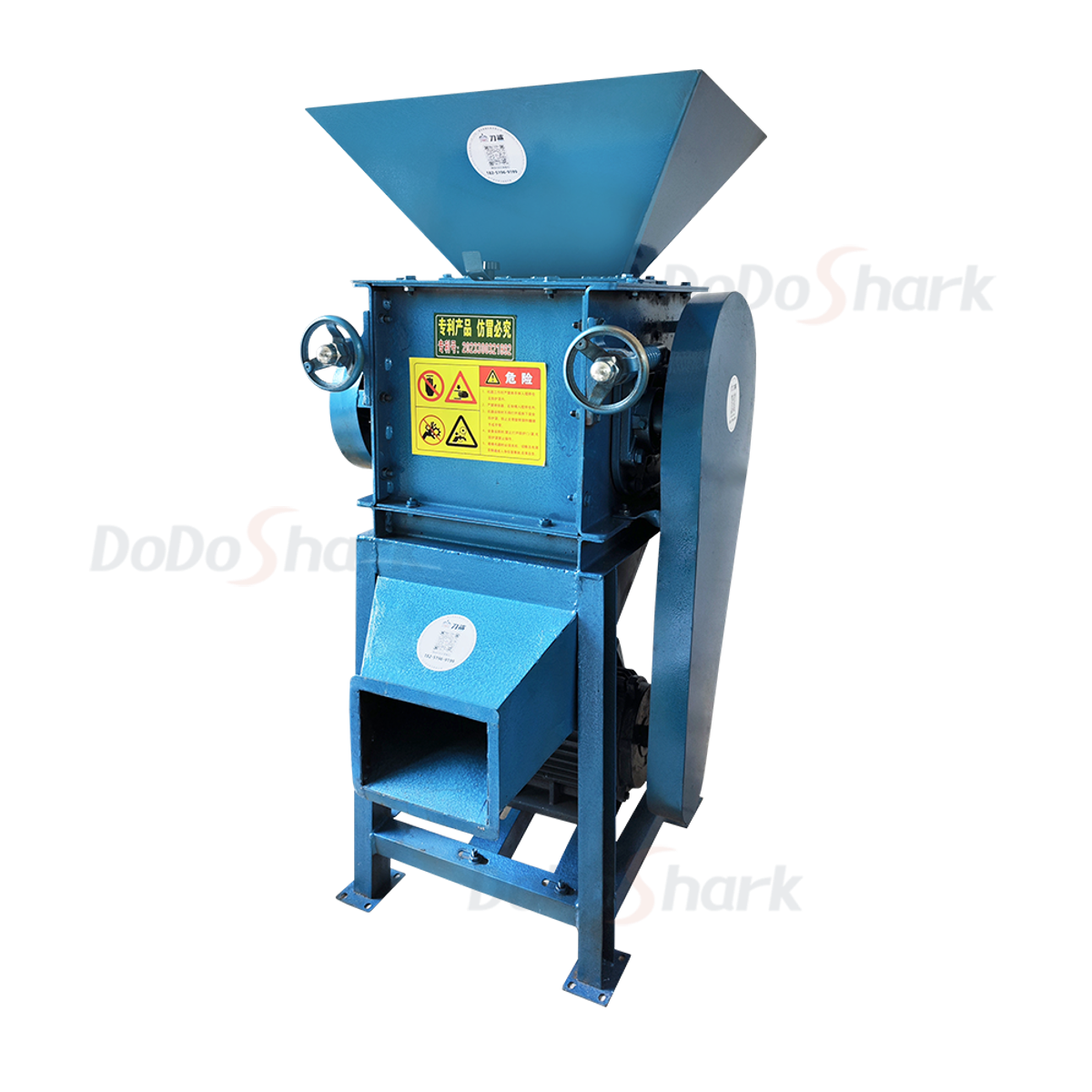

| M14-30 | 14*30 | 2t/500kg | 4 | 115 | 50*55*125 |

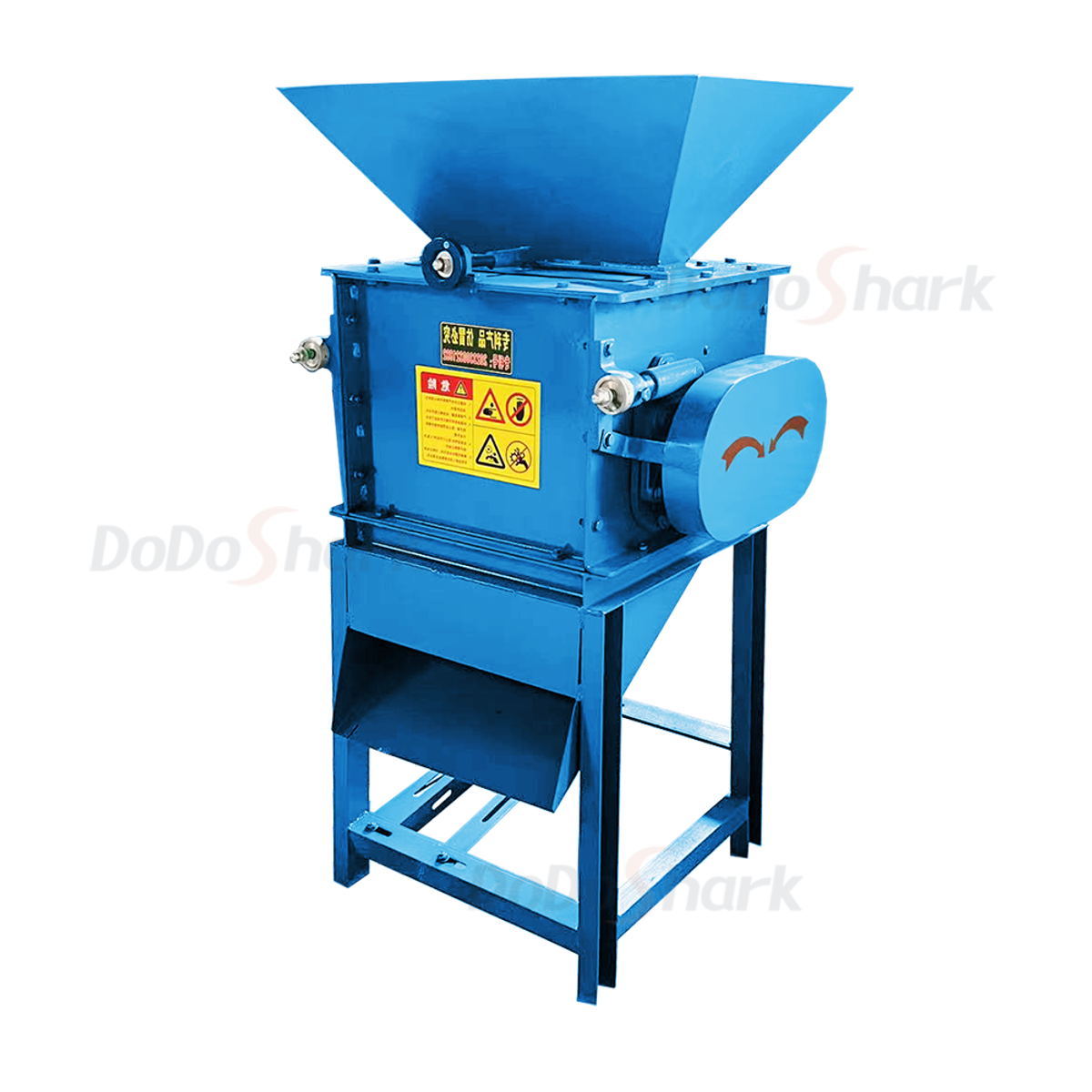

| M14-40 | 14-40 | 3t/800kg | 4 | 140 | 60*55*125 |

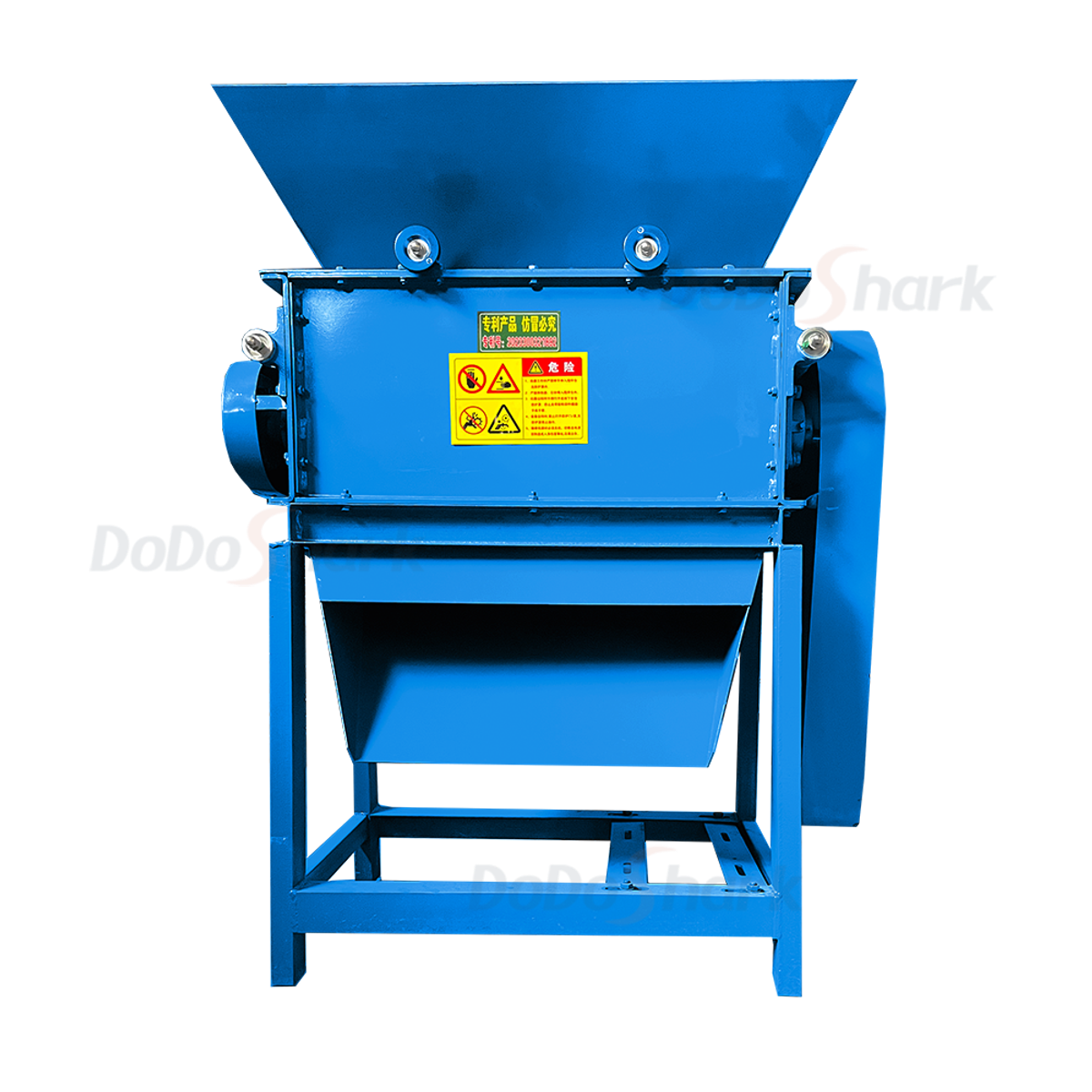

| M14-50 | 14*50 | 4t/1t | 5.5 | 160 | 82*65*136 |

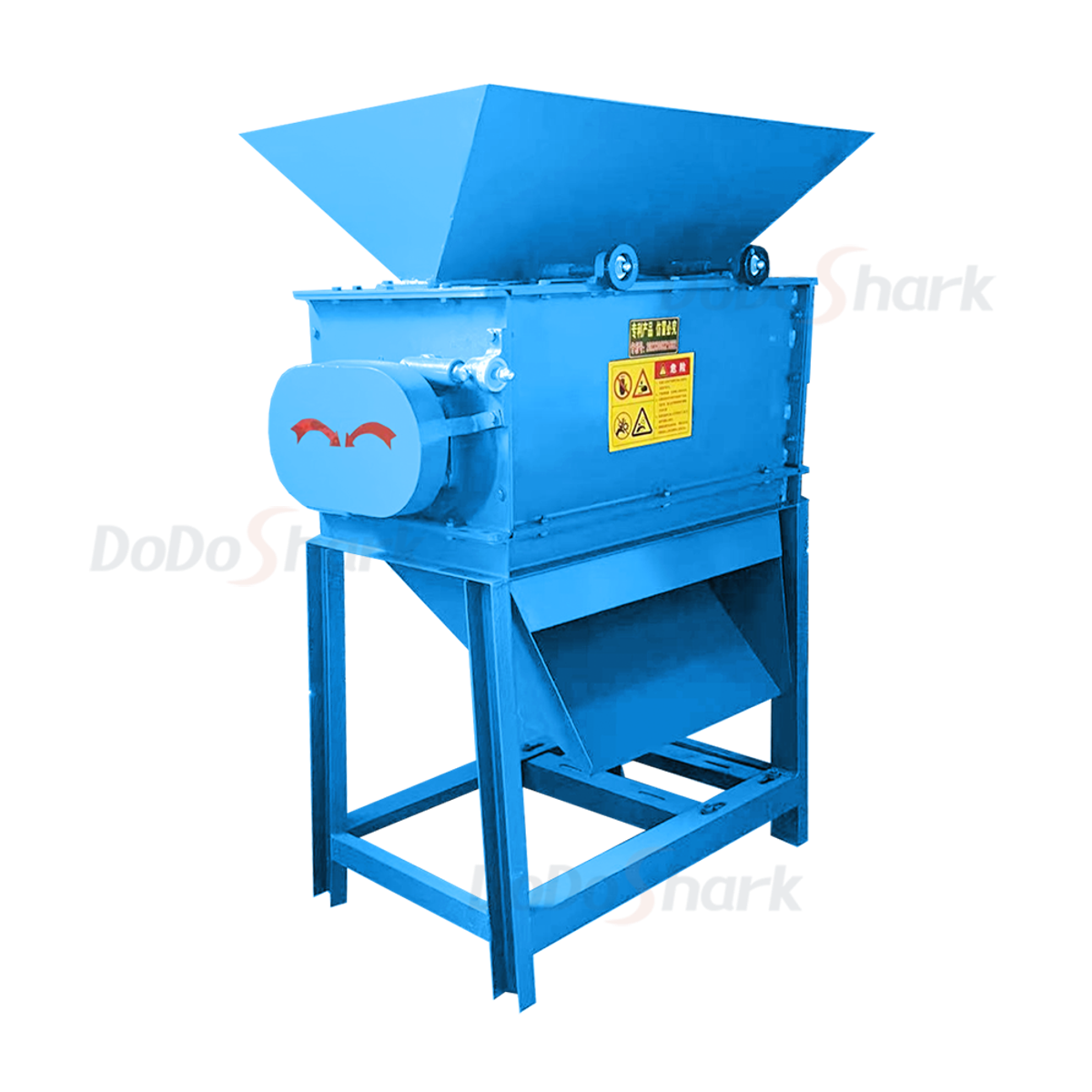

| M14-70 | 14*70 | 6t/1.5t | 7.5 | 185 | 98*65*136 |
| M17-100 | 17*100 | 10t/2.5t | 15 | 350 | 138*90*140 |

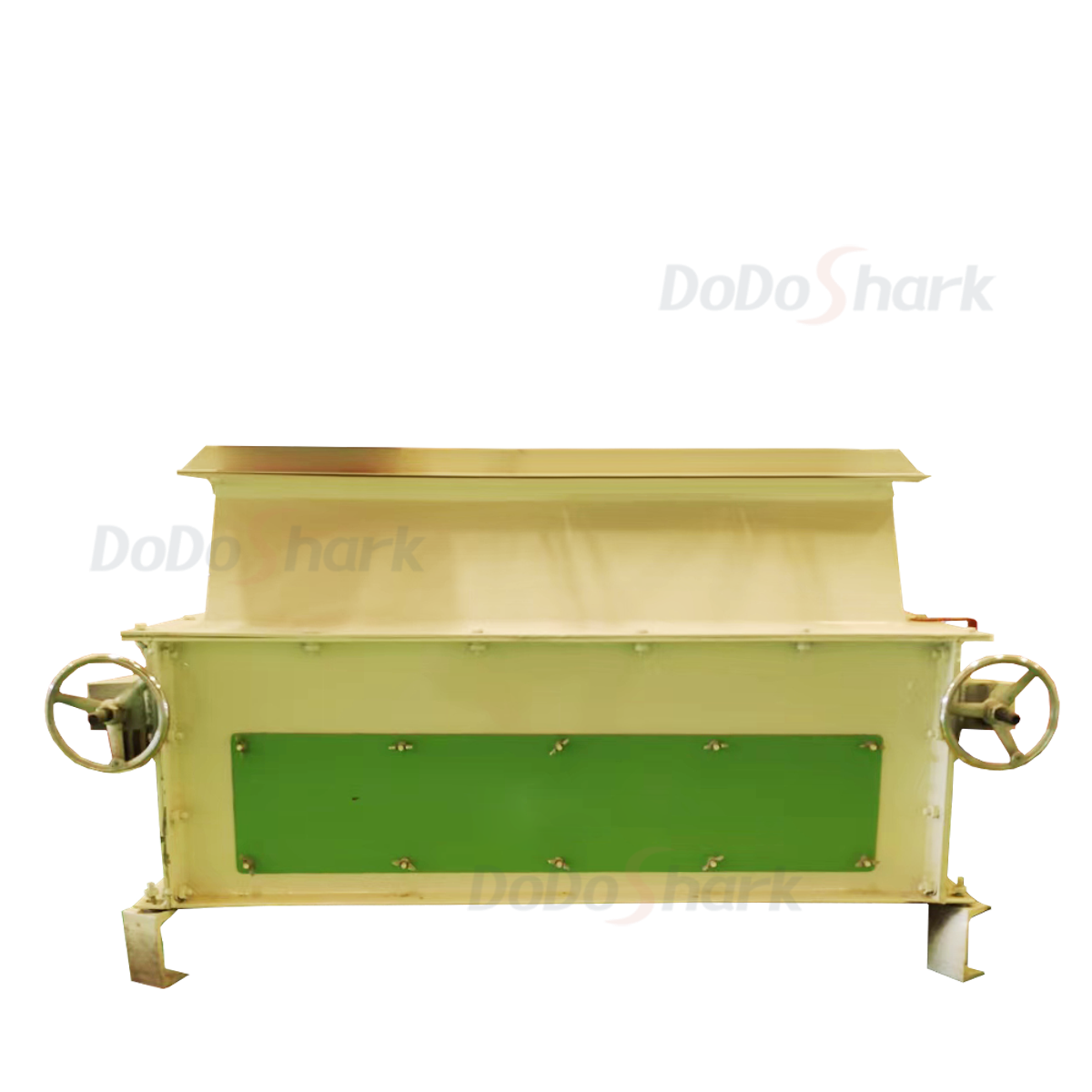

| Solid Roller M15-100 | 15*100 | 10t/2.5t | 7.5 | 489 | 147*110*47 |

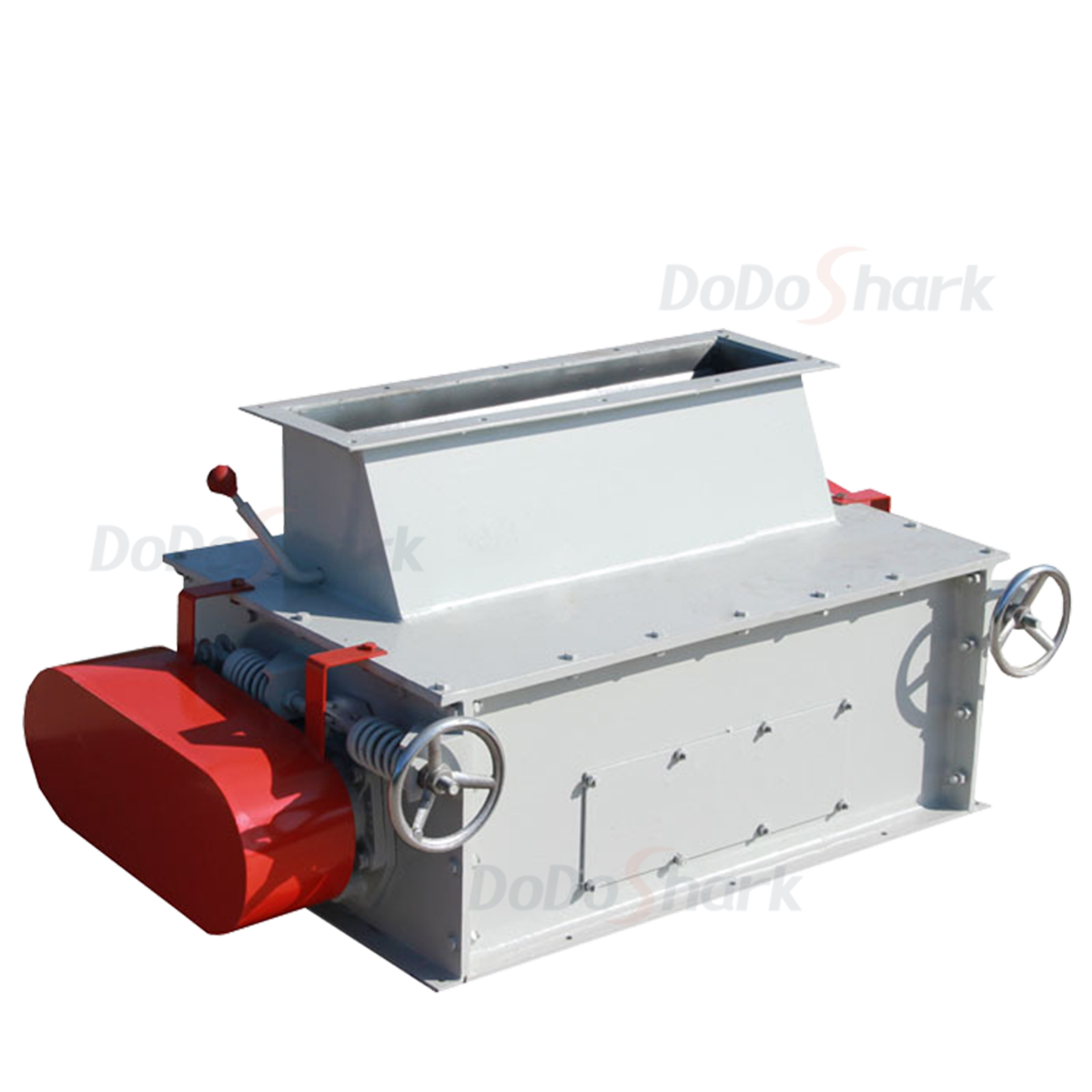

| Solid Roller M15-200 | 15*200 | 15t/3.8t | 7.5 | 549 | 175*125*70 |
| Solid Roller M20-170 | 20*170 | 25t/6t | 11 | 1155 | 225*138*60 |
