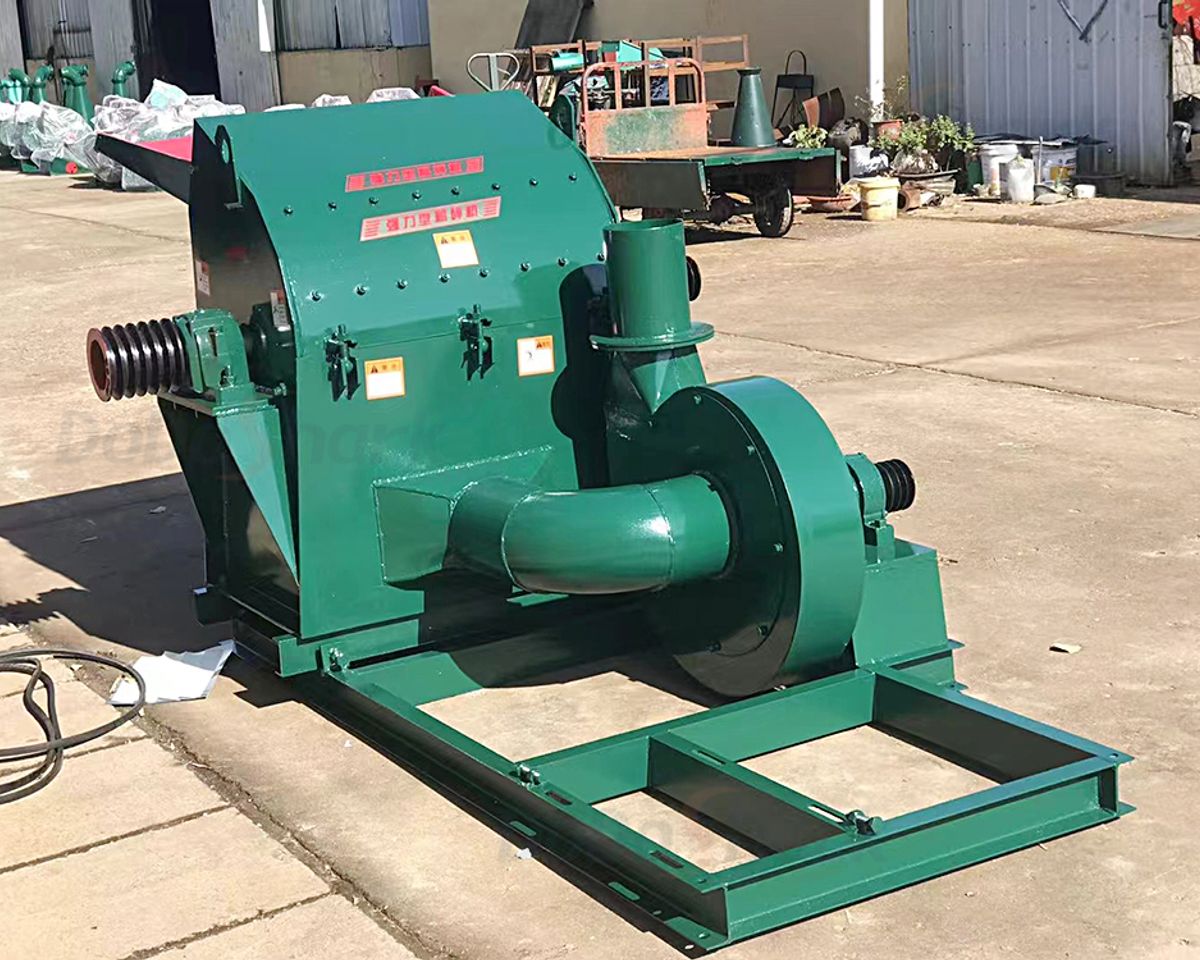

Ultra-High Production Capacity
The largest model (60-110) can achieve a capacity of up to 8 tons per hour.
OUR SLOGAN
Work with Confidence, Reap in Joy
WORKING HOURS (BEIJING TIME)
Mon - Sun: 9:00 - 22:00
OUR SLOGAN
Work with Confidence, Reap in Joy
WORKING HOURS (BEIJING TIME)
Mon - Sun: 9:00 - 22:00

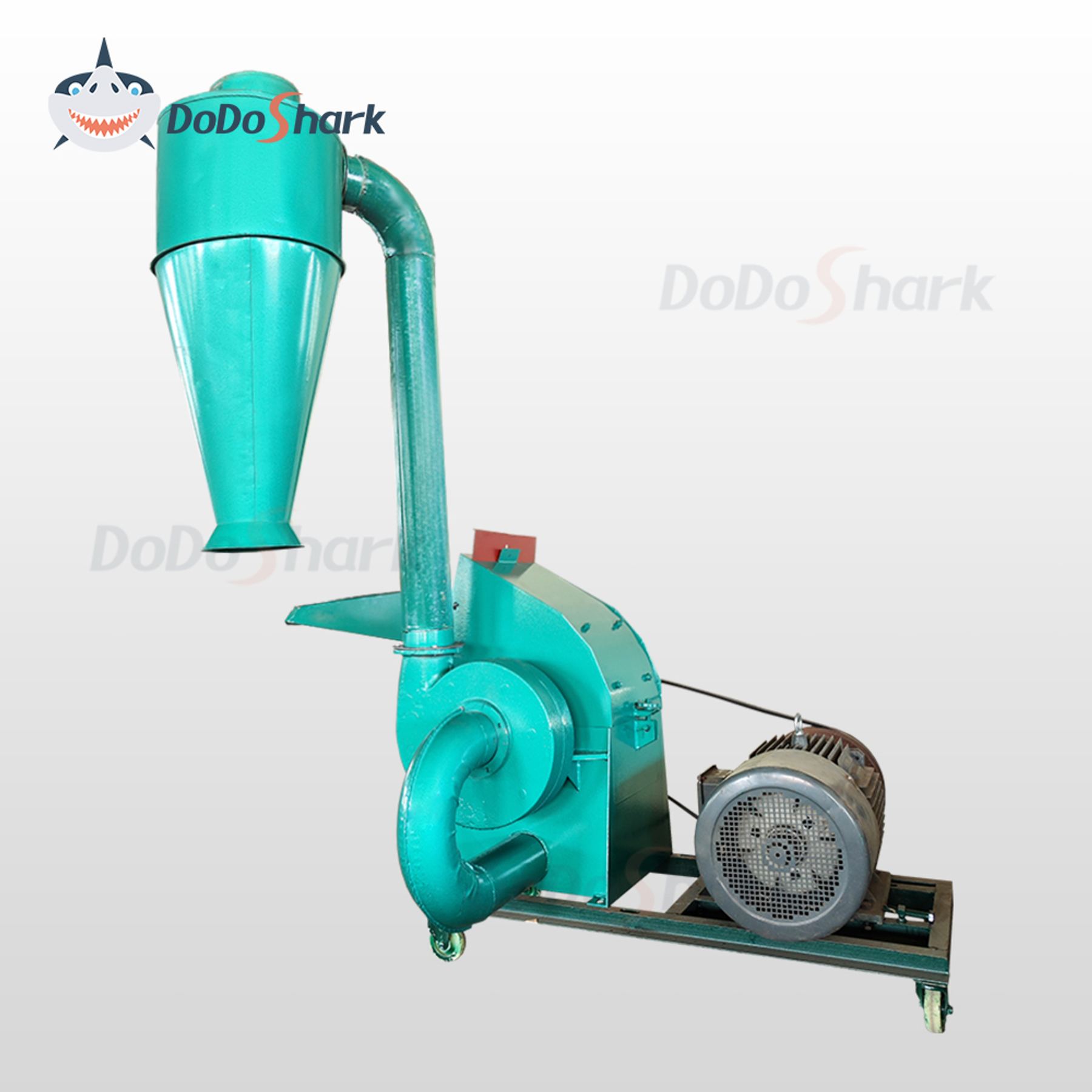

DoDoShark Hammer Mill Grinder is a mechanical grinding device composed of a high-strength carbon steel housing, alloy hammer blades, wear-resistant liners, and a dynamically balanced rotor, specially designed for the dry grinding of brittle materials and fibrous materials with medium to low hardness. It is suitable for coarse and fine grinding of materials such as corn stalks, corn cobs, forage, wood chips, feed pellets, and traditional Chinese medicine raw materials. The particle size can be controlled by changing the screen, typically ranging from 5 to 80 mesh. It is widely used in agriculture, livestock farming, and specific industrial applications. The crusher achieves efficient size reduction through the strong impact, shearing, and grinding action between the high-speed rotating hammer blades and the materials, liners, and screens.
The largest model (60-110) can achieve a capacity of up to 8 tons per hour.

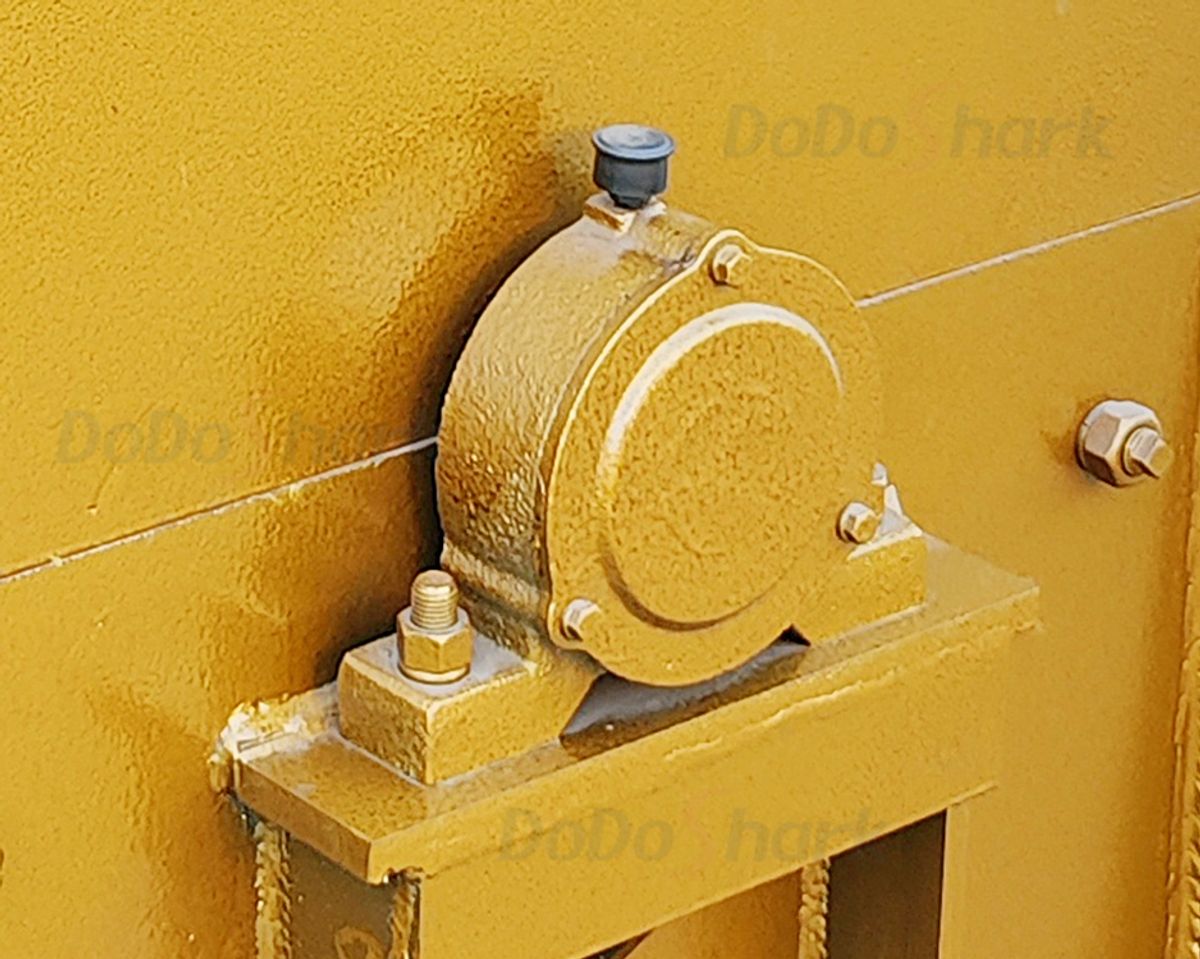

Equipped with high-durability high-speed bearings, supporting continuous operation for up to 12 hours (at ambient temperatures below 25°C)

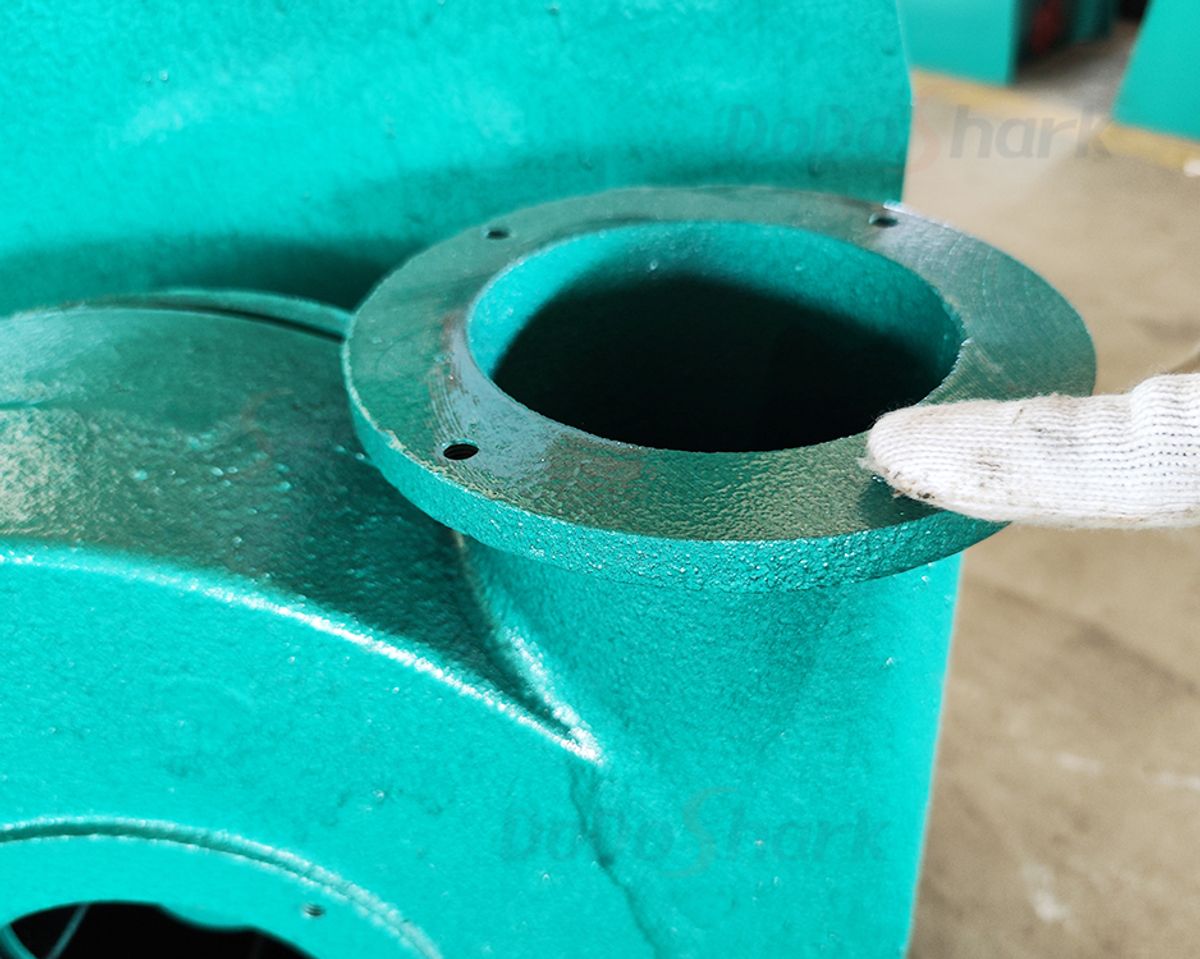

The reinforced Grinding chamber is made of 8–10 mm thick steel plates and comes with a 5-year warranty.

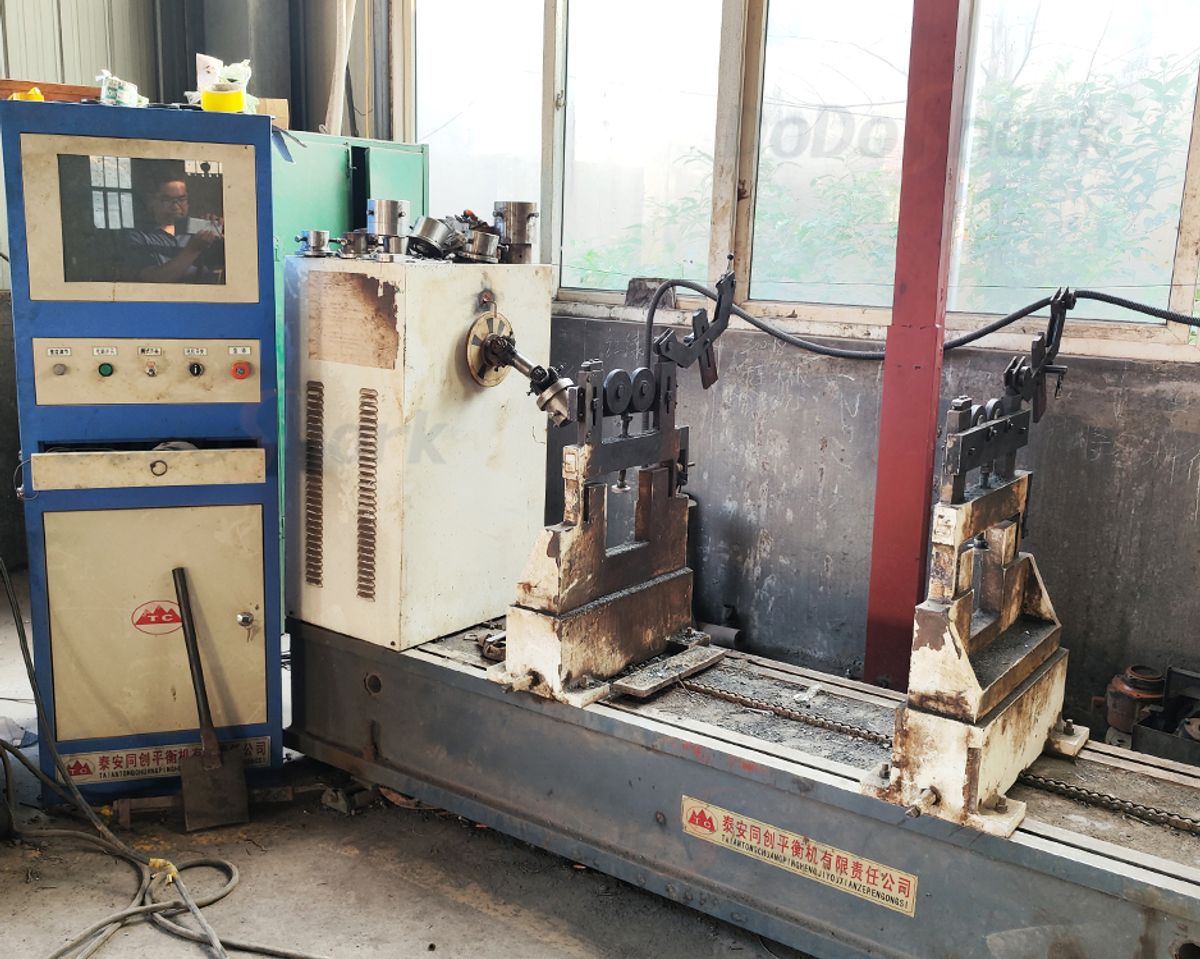

The hammer frame, hammer blades, and fan impeller are dynamically balanced, reducing operating noise by approximately 30%.

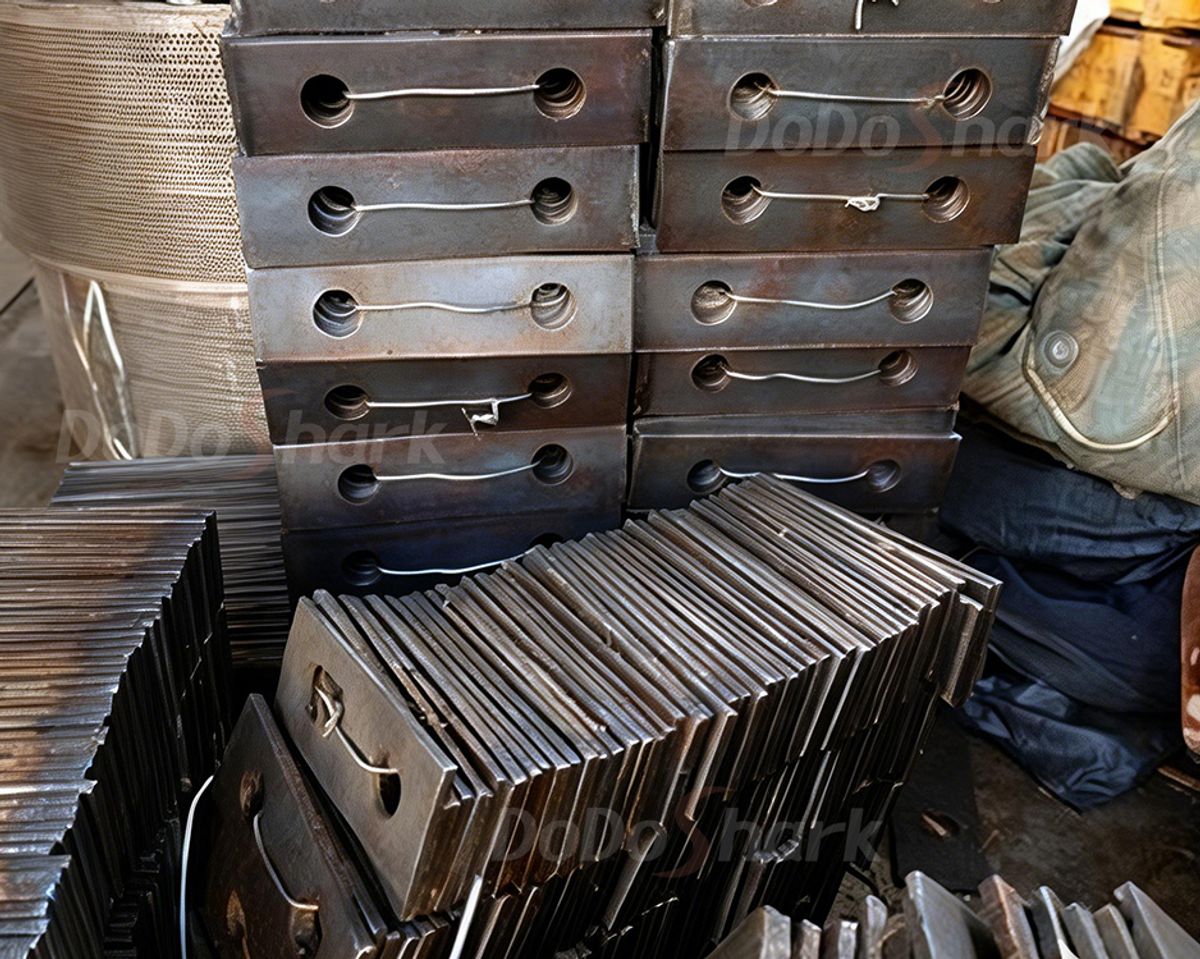

Carburized hammer blades increase durability by up to three times.

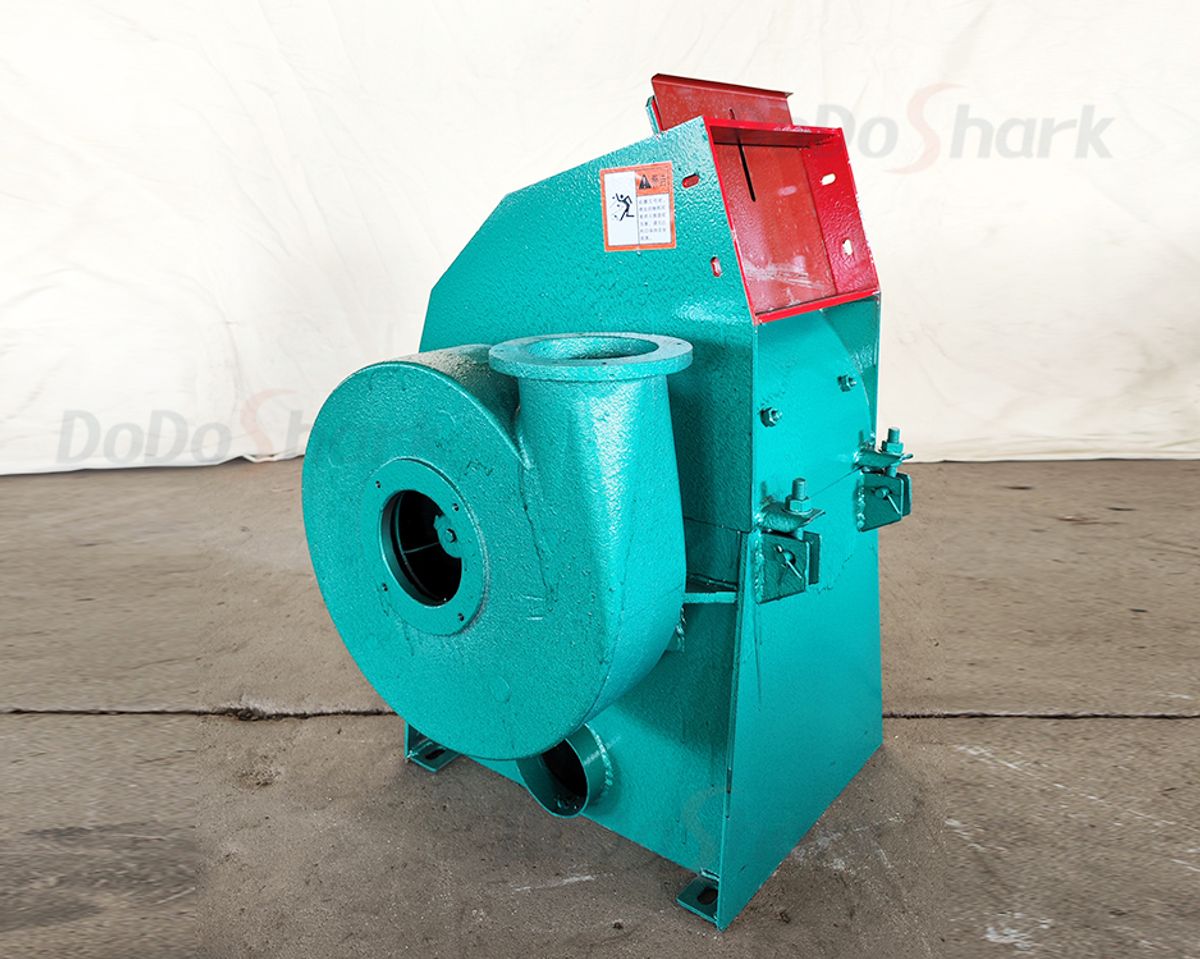

All models are equipped with enlarged fans to provide higher air pressure and greater airflow, enabling faster material discharge.
Corn, soybean meal, small bones, etc.
Forage, corn stalks, corn cobs, wood chips, wooden boards, foam plastics, etc.
Fresh grass, green stalks, mango pits, kitchen waste, etc.
0–10 cm
From 1 mm(finest) to 20 mm(coarsest)
5–60 mesh (depending on the material)
Grinding Results
Materials Suitable for Grinding: dry granules, dry forage. Number of Inlets: 1
Materials Suitable for Grinding: dry granular materials, dry forage, long-stem dry materials; wet grass, wet stalks. Number of Inlets: 2
Materials Suitable for Grinding: materials with high oil or moisture contenT, wet materials and high-density materials. For example: mango pits, kitchen waste, shrimp shells, etc. Number of Inlets: 1
Materials Suitable for Grinding: dry materials, loose and fluffy dry forage materials. For example: straw, peanut vines, sweet potato vines, garlic leaves, etc. Number of Inlets: 1
| Model | Corn Capacity(kg/h) | Motor Power (kW) | Main Shaft Speed (rpm) | Number of Hammers | Grinding Chamber Wall Thickness (mm) |
|---|---|---|---|---|---|
| M30-20 | 400 | 3 | 4000 | 16 | 3 |

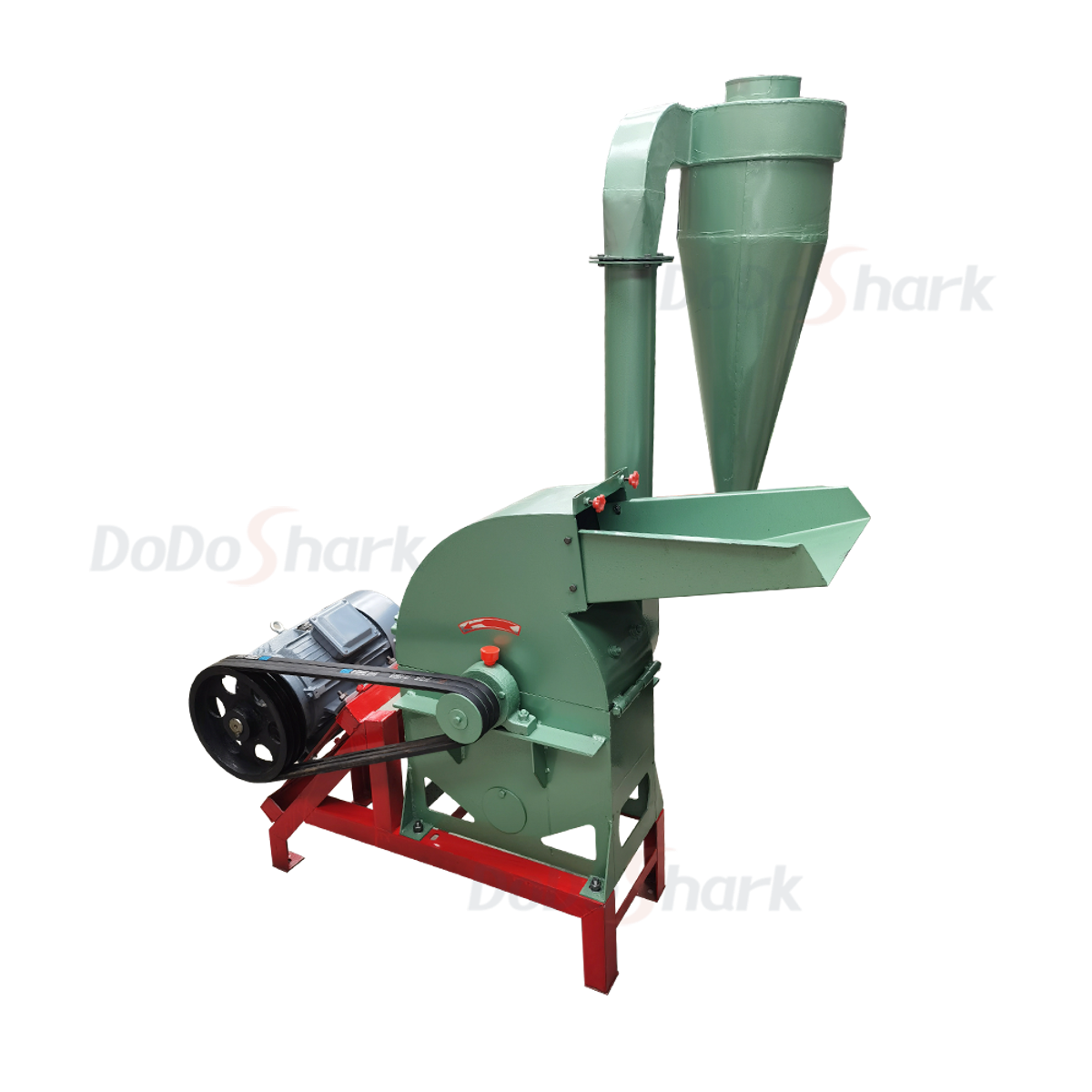

| M40-20 | 700 | 7.5 | 4000 | 16 | 4 |

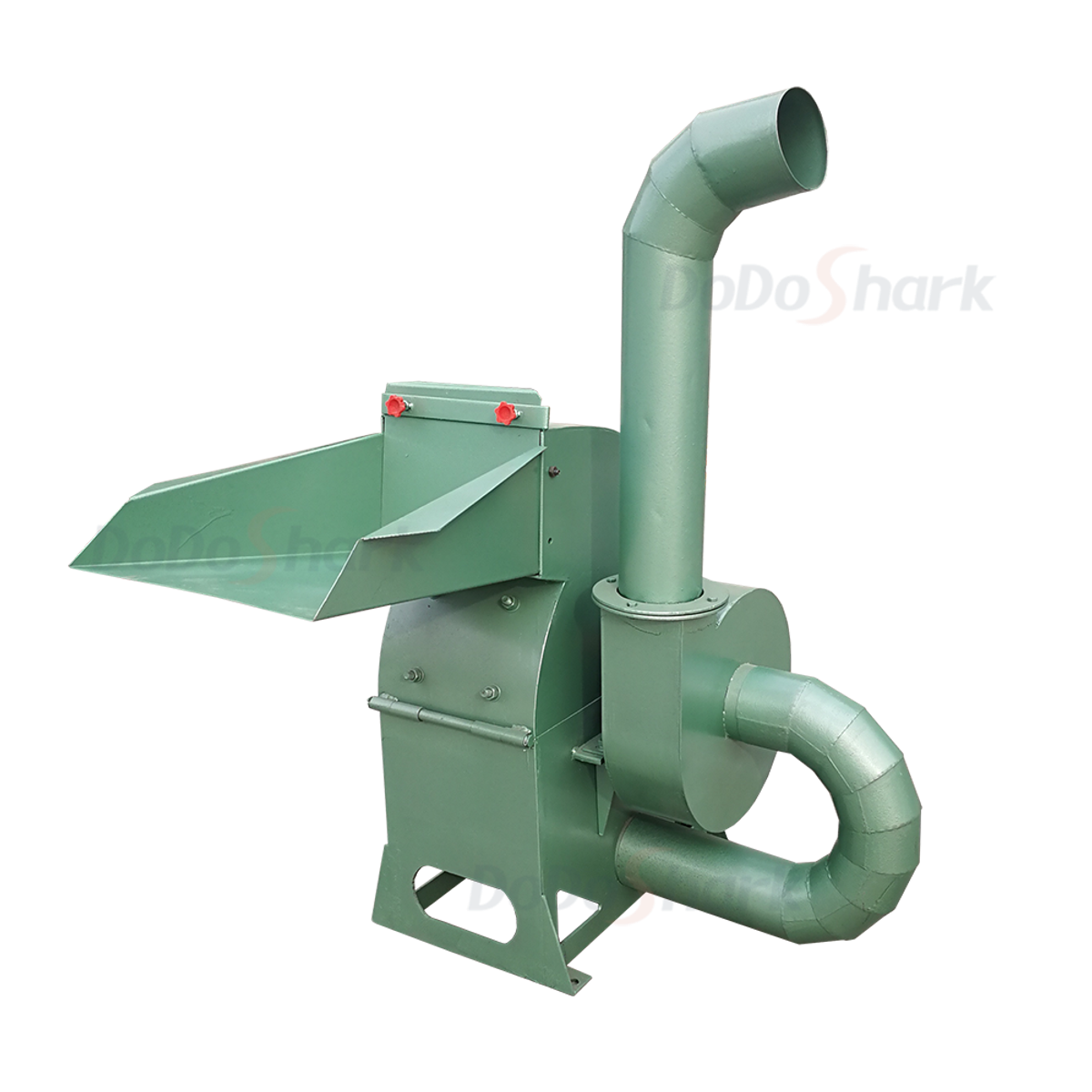

| M40-28 | 1000 | 11 | 4000 | 24 | 4 |

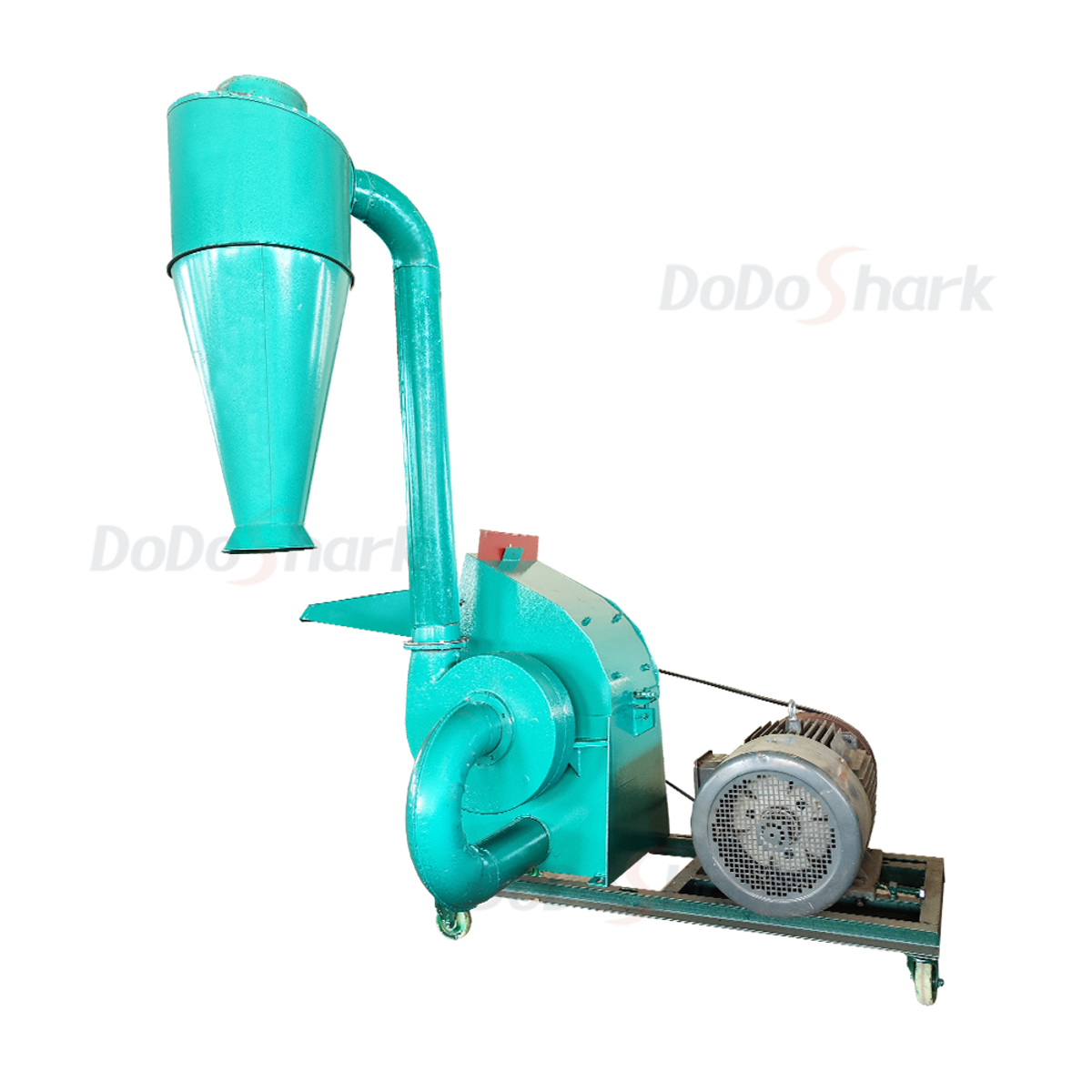

| M40-35 | 1500 | 15 | 4000 | 24 | 5/8 |

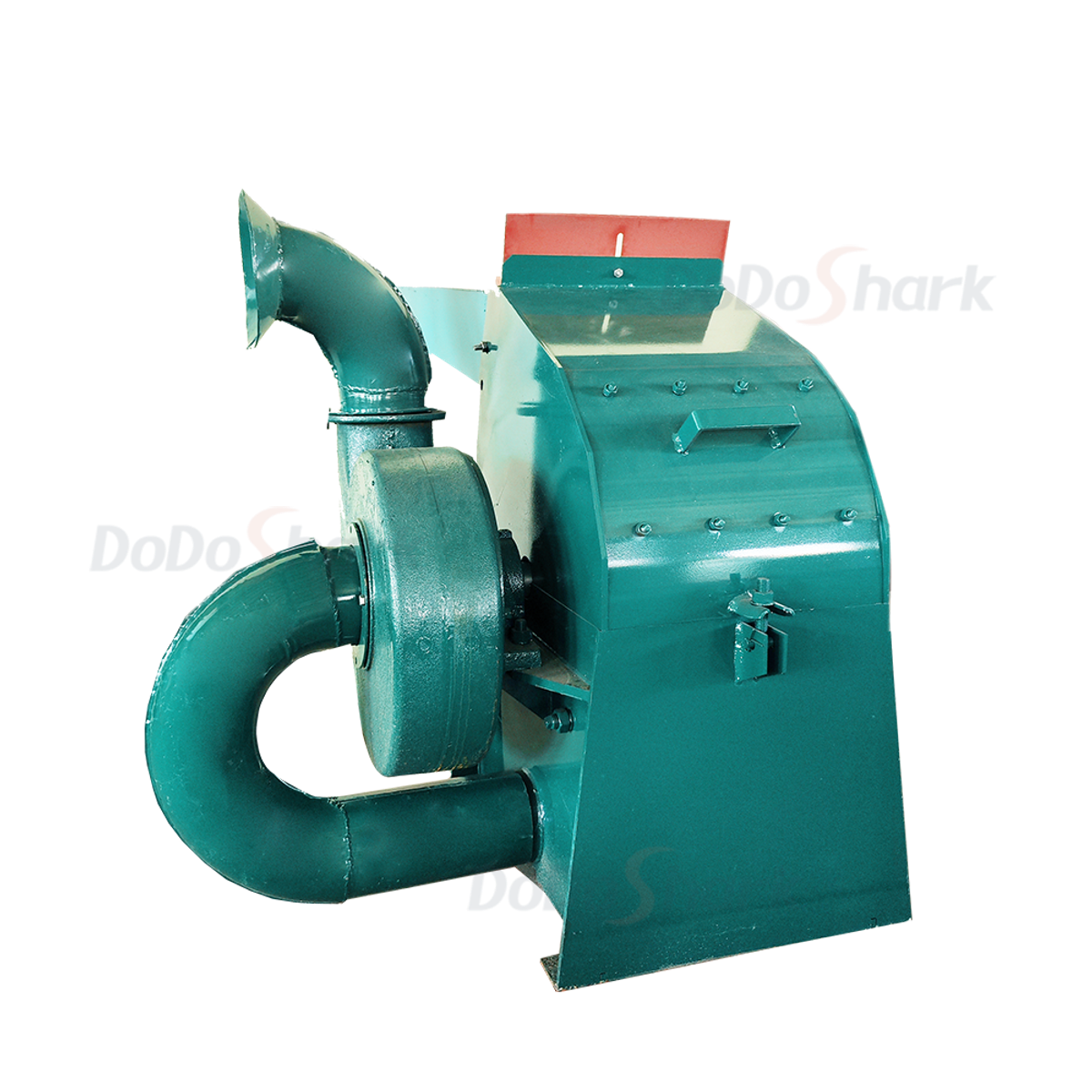

| M50-40 | 2500 | 22 | 3440 | 24 | 8 |
| M50-60 | 3500 | 30 | 3440 | 32 | 8 |
| M50-80 | 5000 | 45 | 2900 | 48 | 10 |
| M60-60 | 5000 | 45 | 2900 | 36 | 10 |

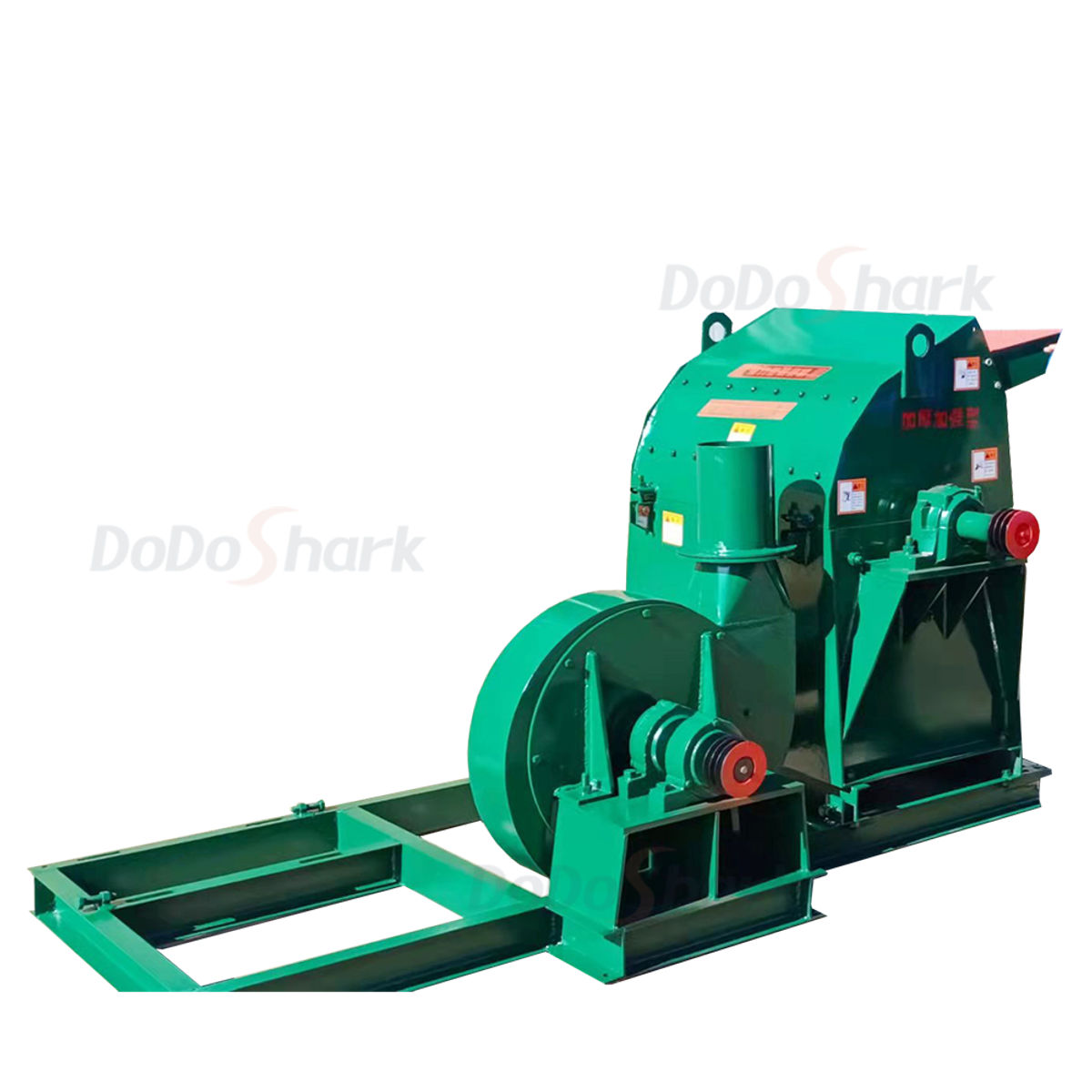

| M60-80 | 6000 | 55 | 2900 | 56 | 10 |

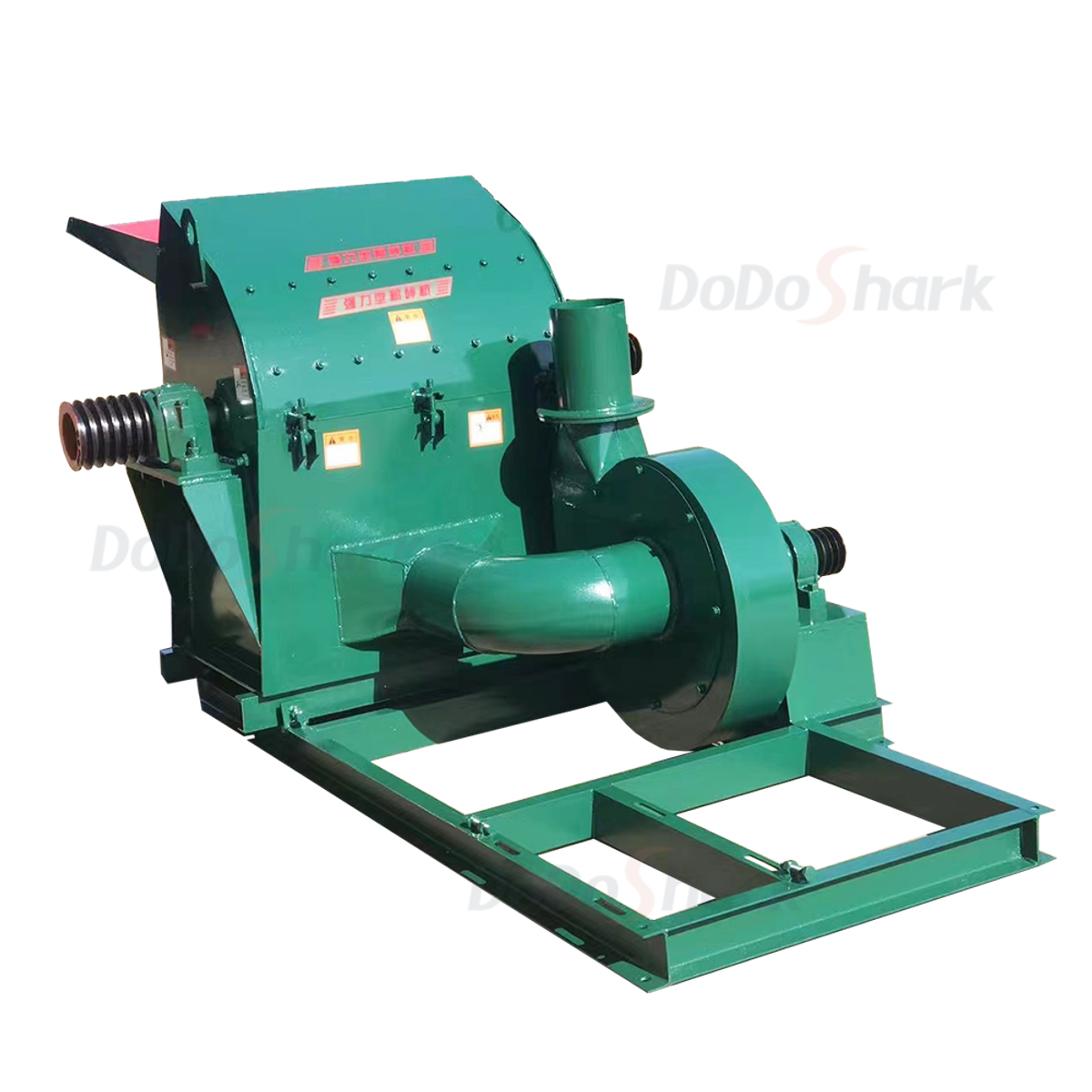

| M60-110 | 8000 | 75 | 2900 | 80 | 10 |

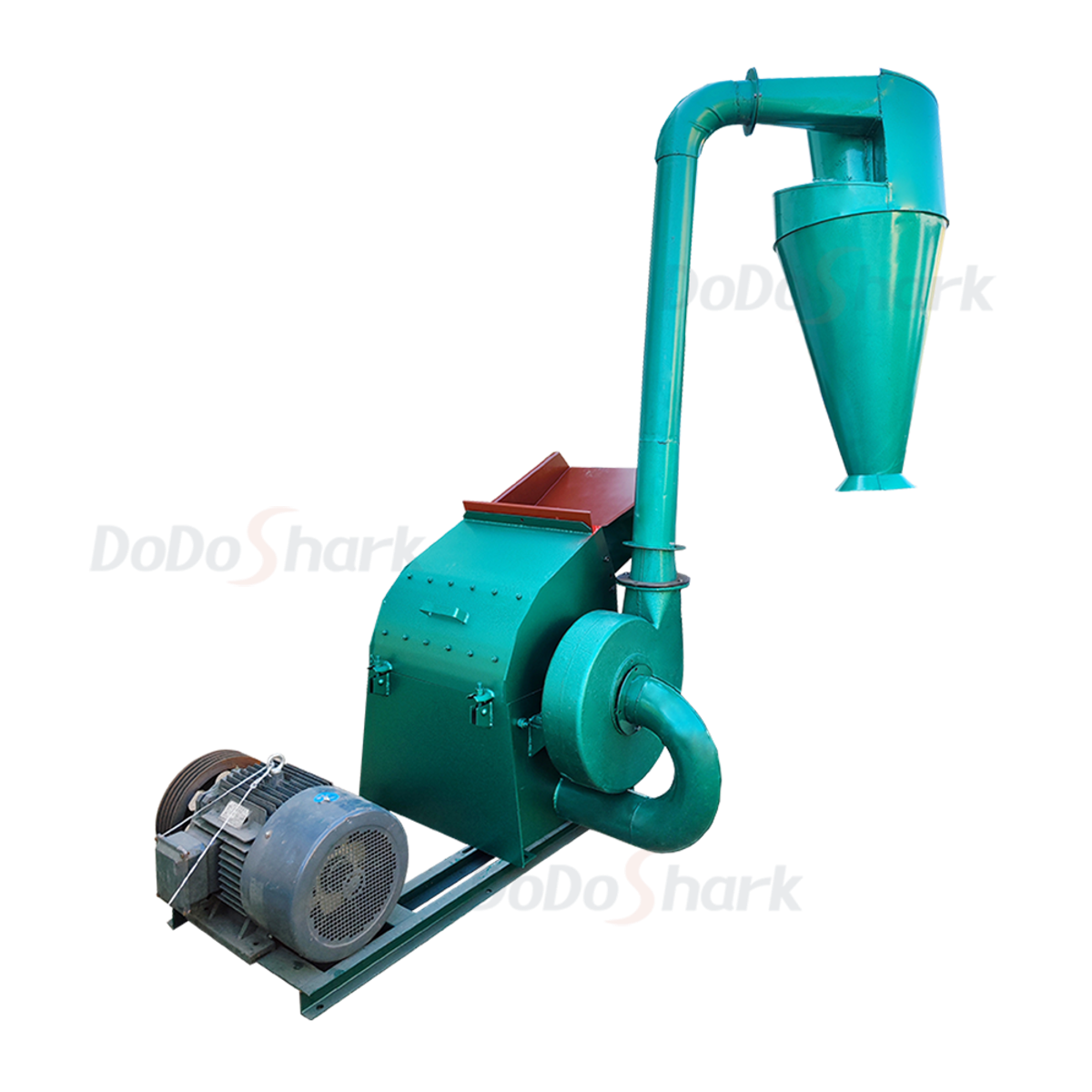

Model Name Explanation Model Example: Model 50-60 ①Rotor Outer Diameter D. ②Grinding Chamber Width W. The larger the D&W, the larger the machine model and the higher the output.
Larger models can be customized according to customer requirements.
