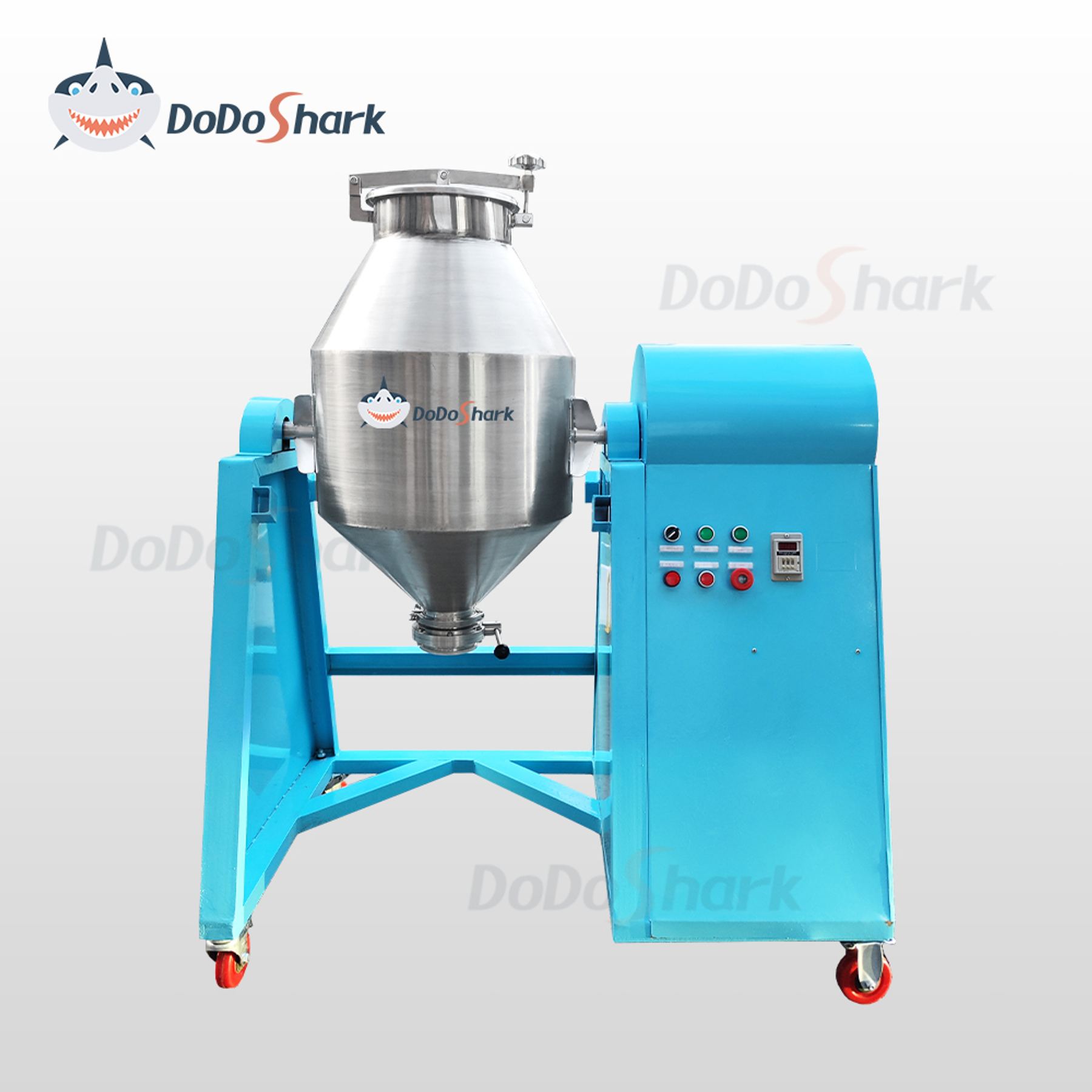

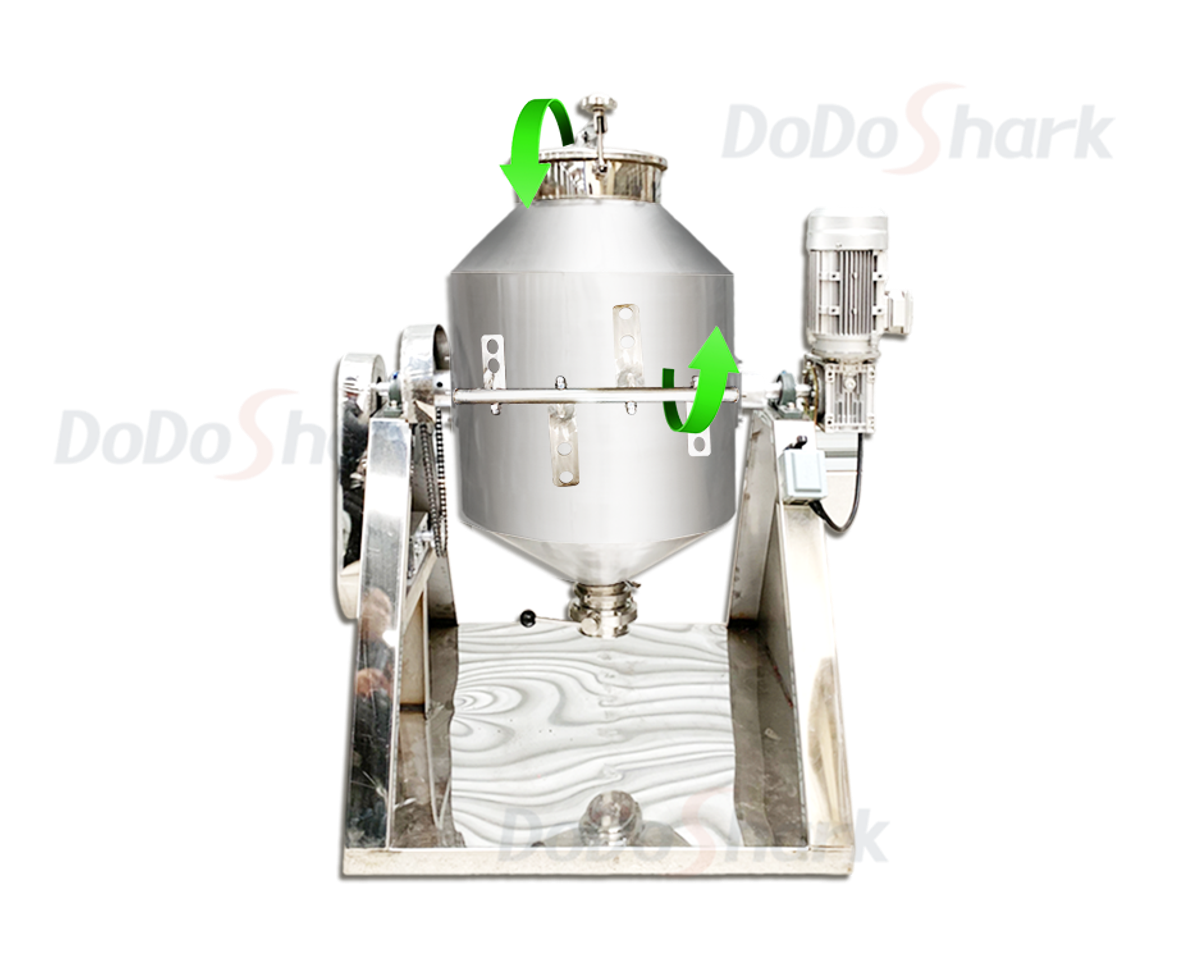

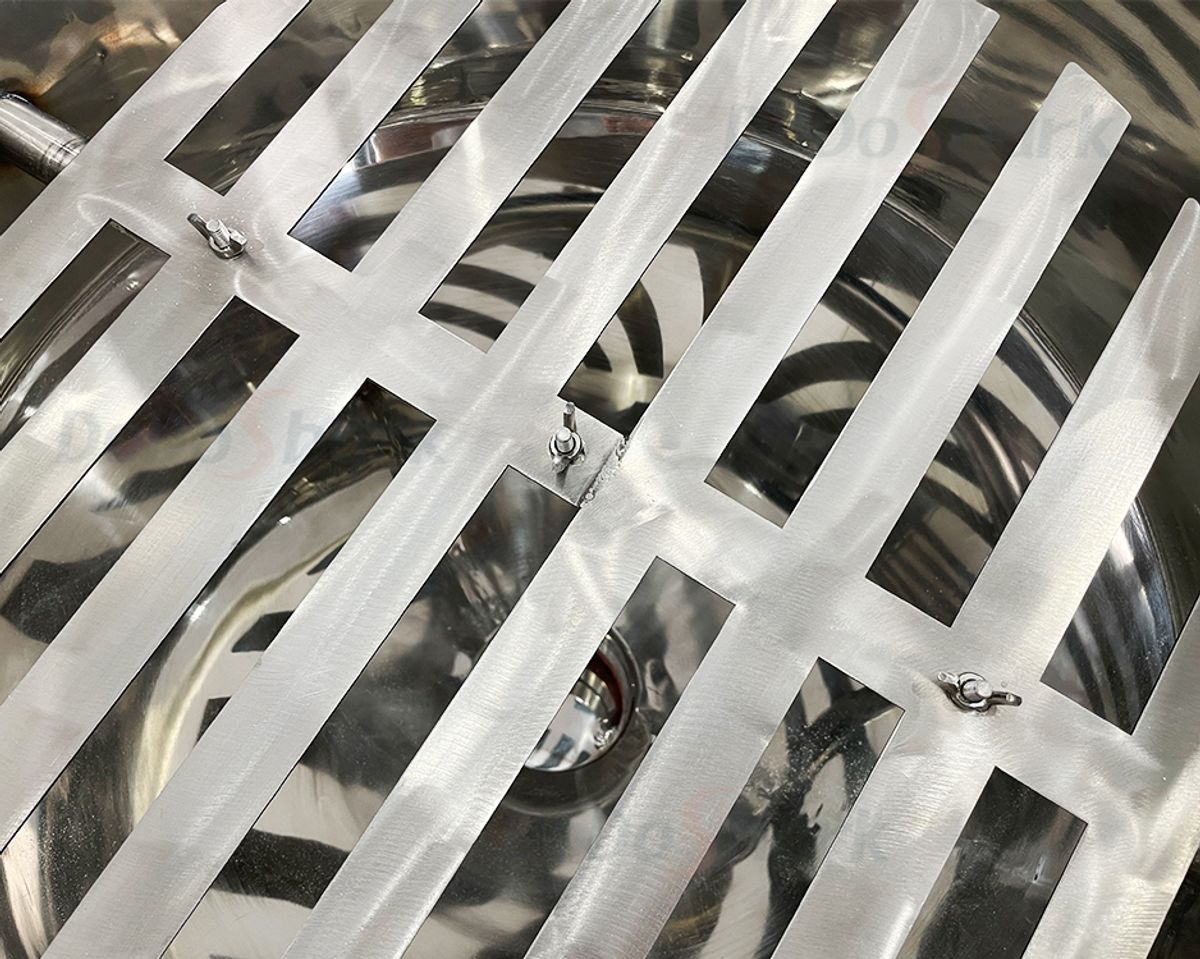

The DoDoShark Double Cone Drum Mixer is a rotary container mixing device consisting of a 201/304/316 stainless steel tank, a drive system, inlet/outlet valves, and sealing components. Featuring a double-cone shell structure, it is specifically designed for powders and granular materials. It utilizes a 360° rotation and gravity-fall dispersion mixing principle to achieve gentle, dead-zone-free mixing with excellent sealing performance, making it ideal for dust-free and cleanroom conditions. It is suitable for material mixing in pharmaceutical, food, chemical, and building material industries. By controlling the tank rotation speed, internal intensifier blades (dispersion blades), and charging volume, the mixing effect is optimized to achieve high uniformity (RSD < 5%) and accommodate a wide mixing ratio of up to 1:10,000 The mixer rotates at a constant speed around a horizontal axis. Under the influence of gravity, centrifugal force, and friction, the materials undergo convection, diffusion, and shear movements, resulting in highly efficient and uniform mixing.
After 38 technical upgrades, the Coefficient of Variation (CV) for mixing uniformity is < 5%.

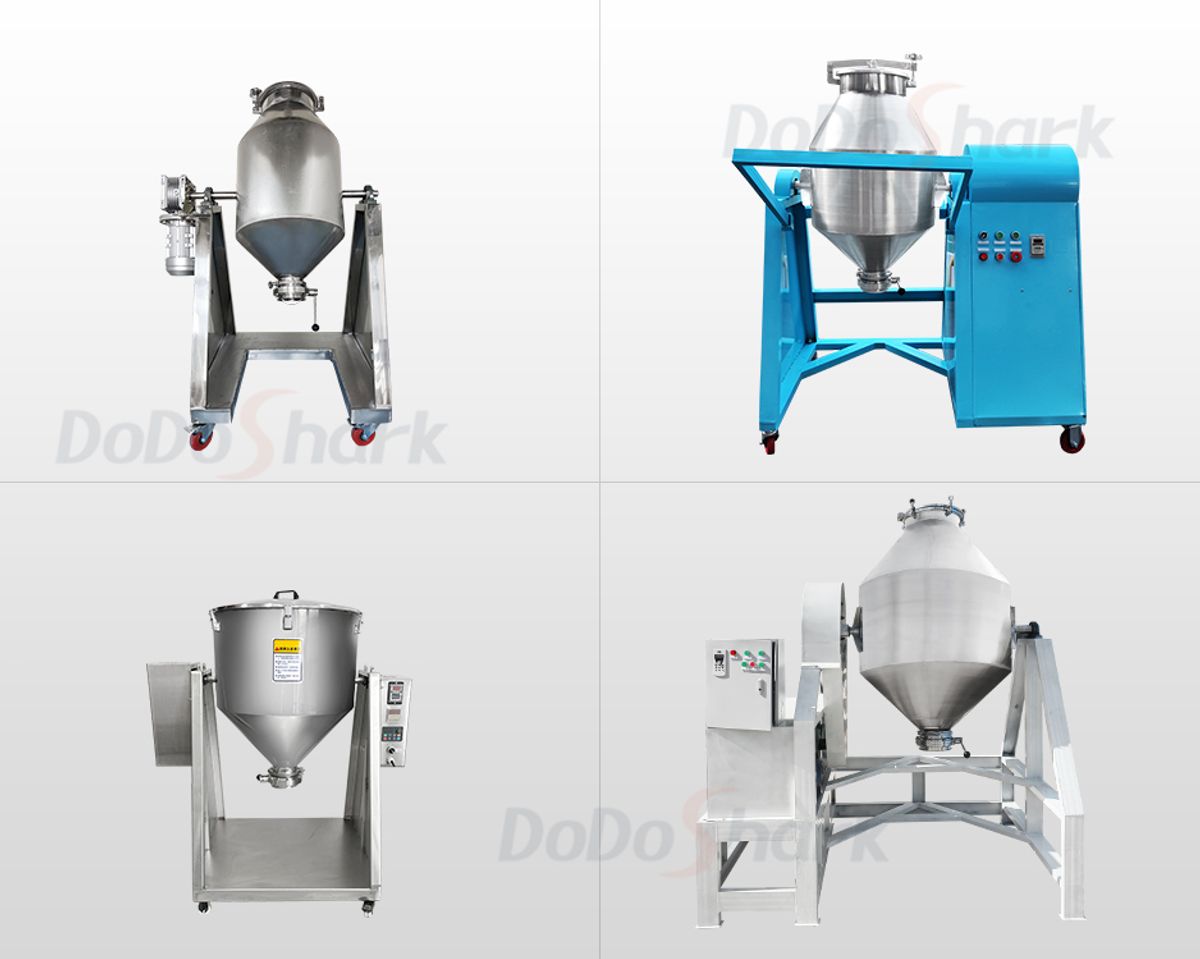

Available from 10L to 10m³ to meet diverse requirements.
The 2D structure surpasses 3D mixing effects and adapts to all types of powder materials.

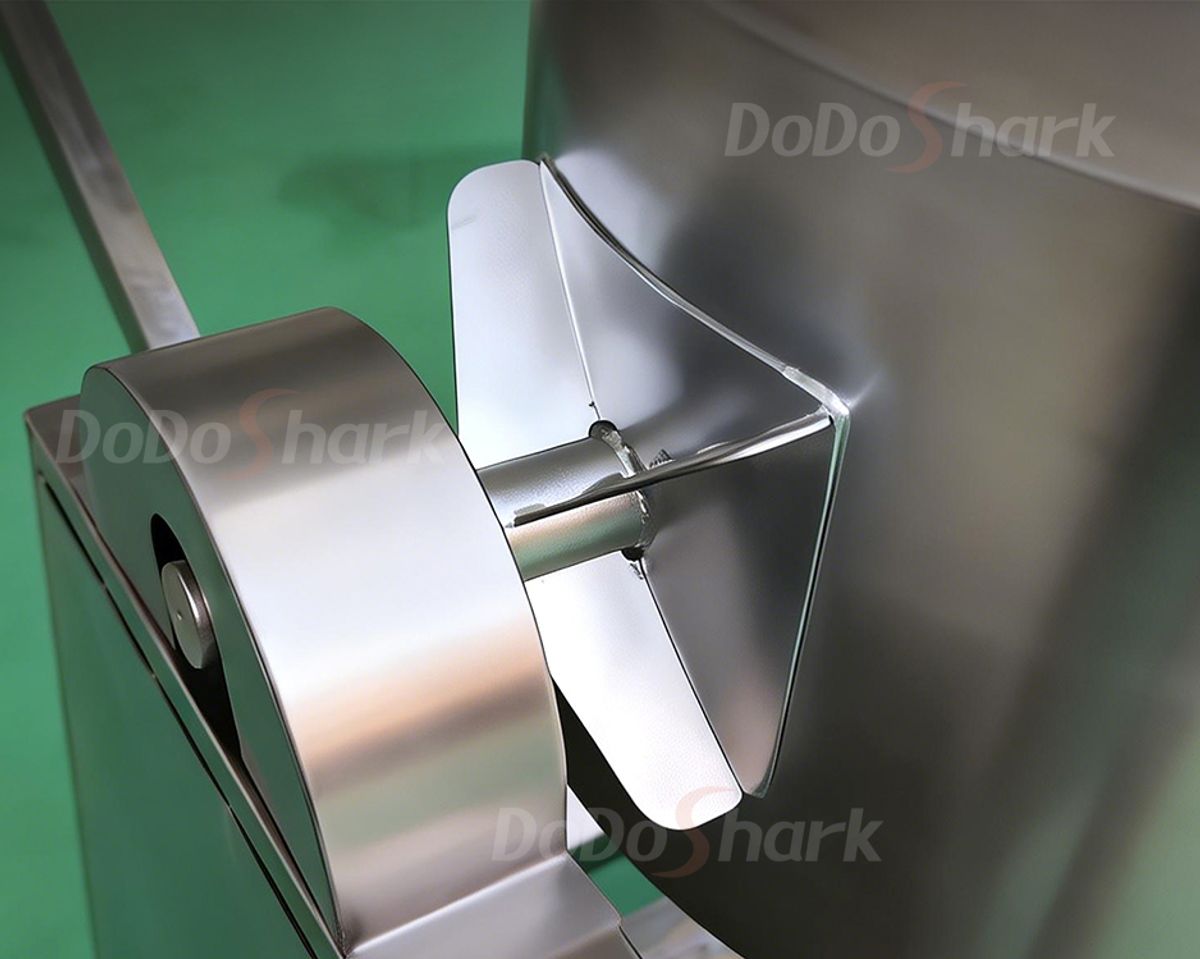

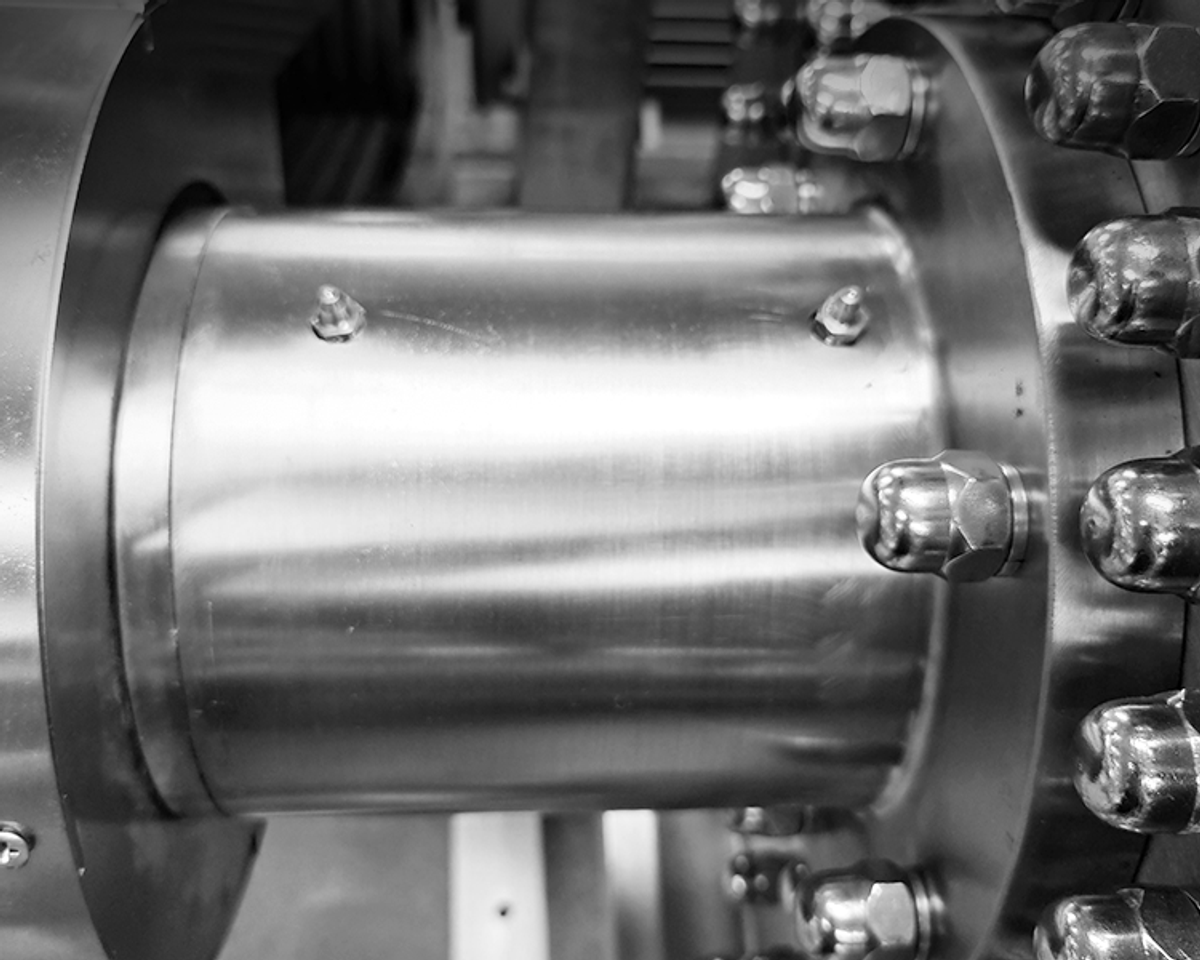

The central shaft and tank body are integrated via welding for a fully sealed, leak-proof design.
Gentle tumbling prevents breakage and heat generation, making it suitable for heat-sensitive materials.
Handles powders and granules with mixing ratios up to 1:10,000.
Suitable for various powders and fine granules
Seasoning Powders/Granules
Traditional Chinese Medicine Powders
Chemical Powders
Various Food Powders
Fish and Shrimp Feed
Metal Powders
General Applications

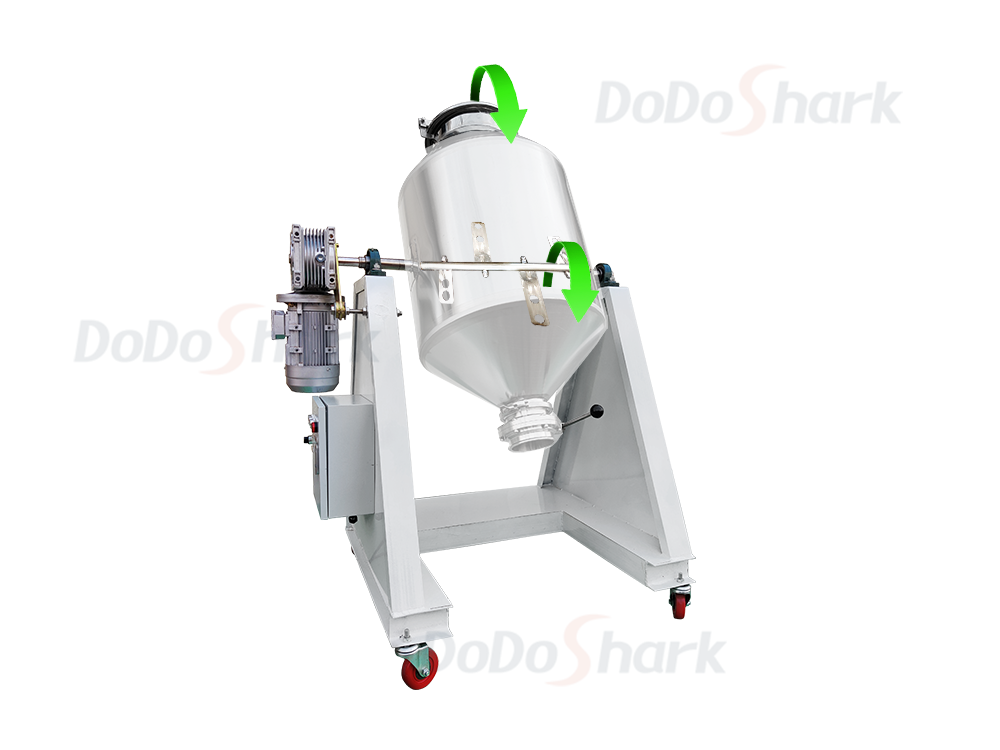

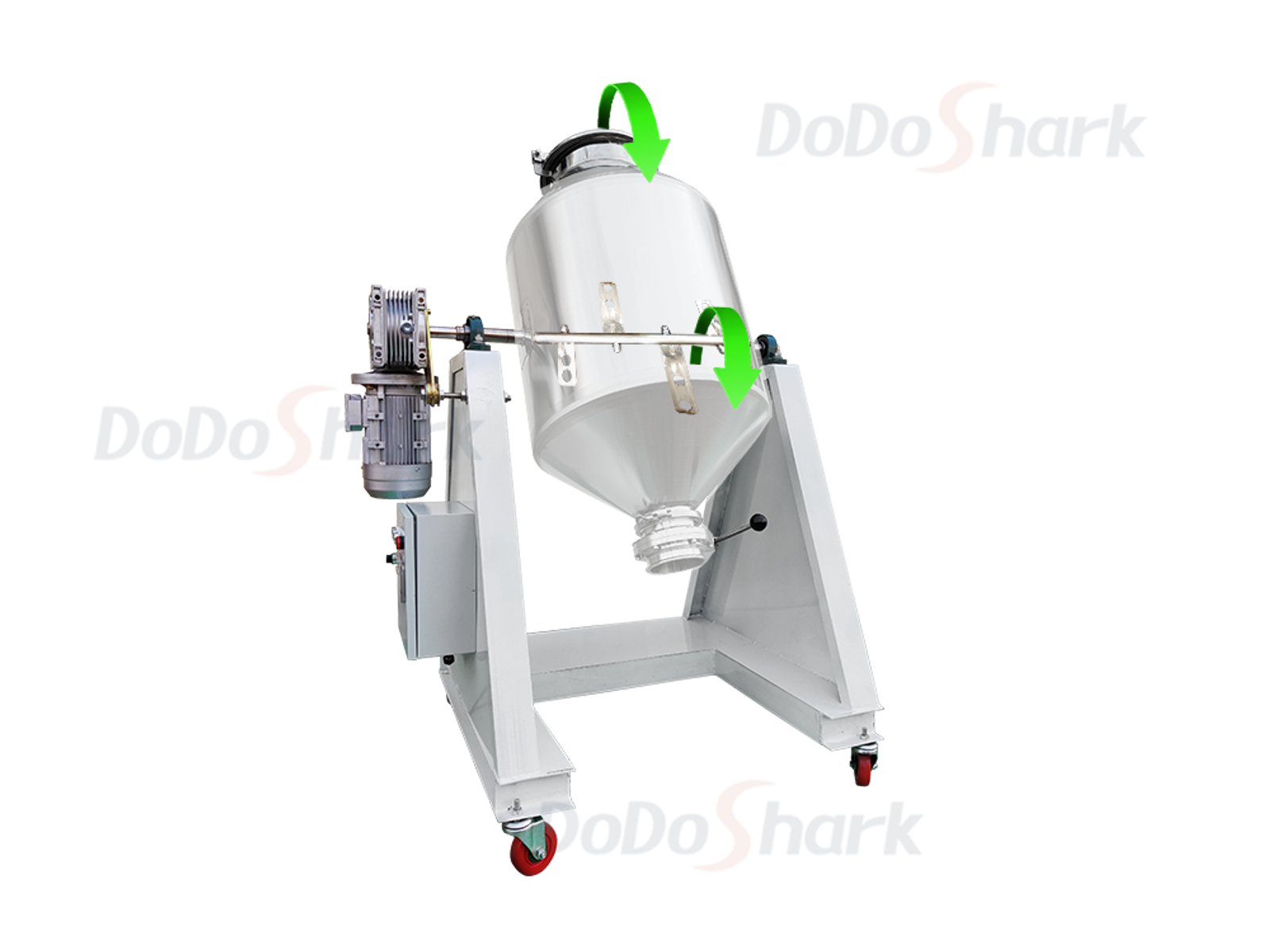

①Standard Series: Basic configuration, cost-effective. ②Standard: SS201 tank + Steel frame (upgradable). ③Load Capacity: Suitable for materials with bulk density ≤ 1 kg/L. ④High-density materials: Customizable configurations available. ⑤Co-rotation: Central shaft and tank are welded as one unit. ⑥Full Seal Design: Suitable for all powder fineness levels.
100L 200L 400L

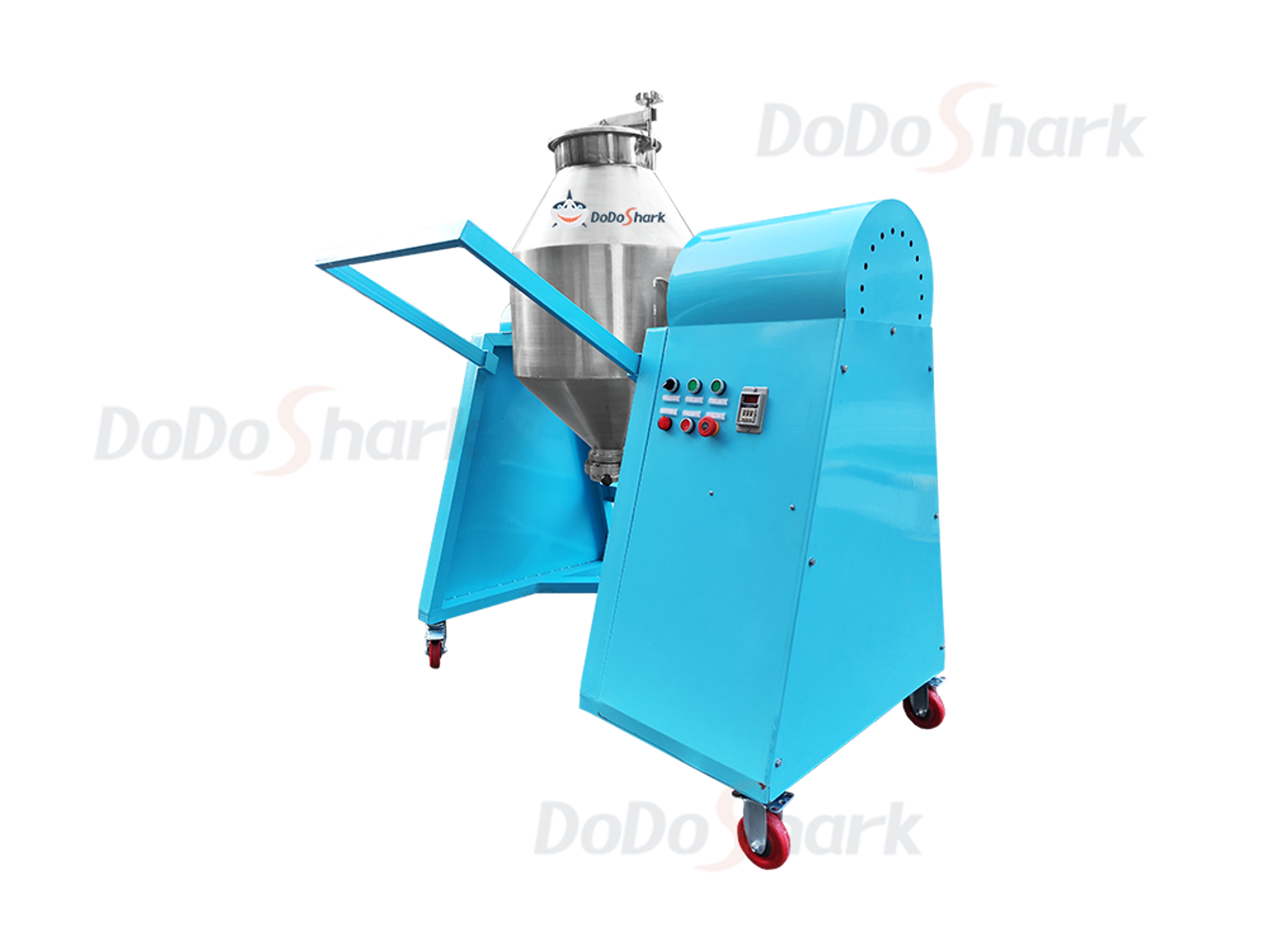

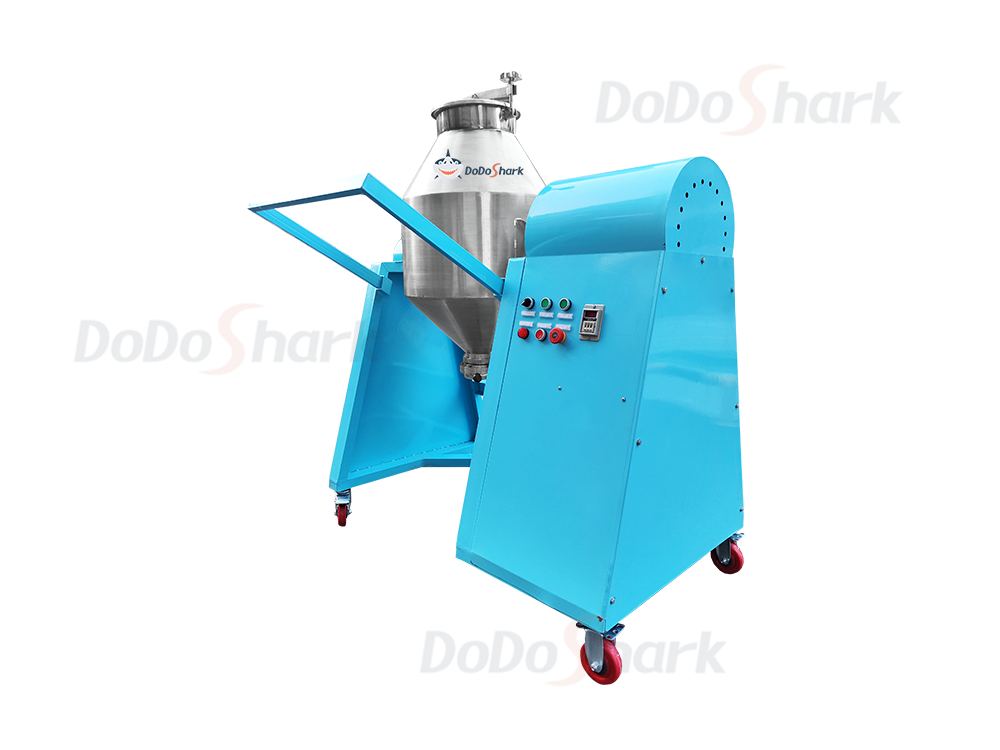

Engineered for high-load and demanding operations
①Heavy-Duty Edition: Premium configuration with a higher price point. ②Safety Upgrade: Full enclosure protective cover and dual safety rails. ③Standard: SS304 tank + Steel frame (upgradable). ④Load Capacity: Suitable for materials with bulk density ≤ 2 kg/L. ⑤All models are equipped with gear reducers, providing powerful drive and low heat generation. ⑥Load capacity is 2x higher than the Standard Series. ⑦Integrated panel-mounted electronic buttons + Timer. ⑧Ultra-Quiet: Noise level < 75 dB quieter than human speech ⑨Newly designed intensifier blades for shorter mixing time and better dispersion.
100L 200L 400L

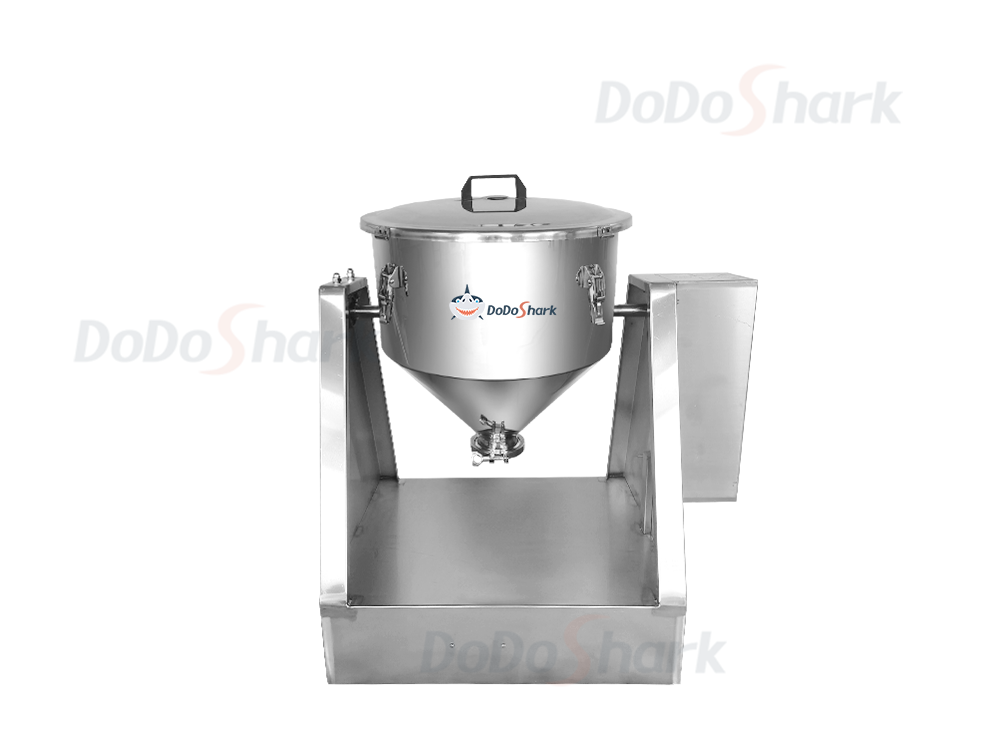

Small-Scale Lab Mixing

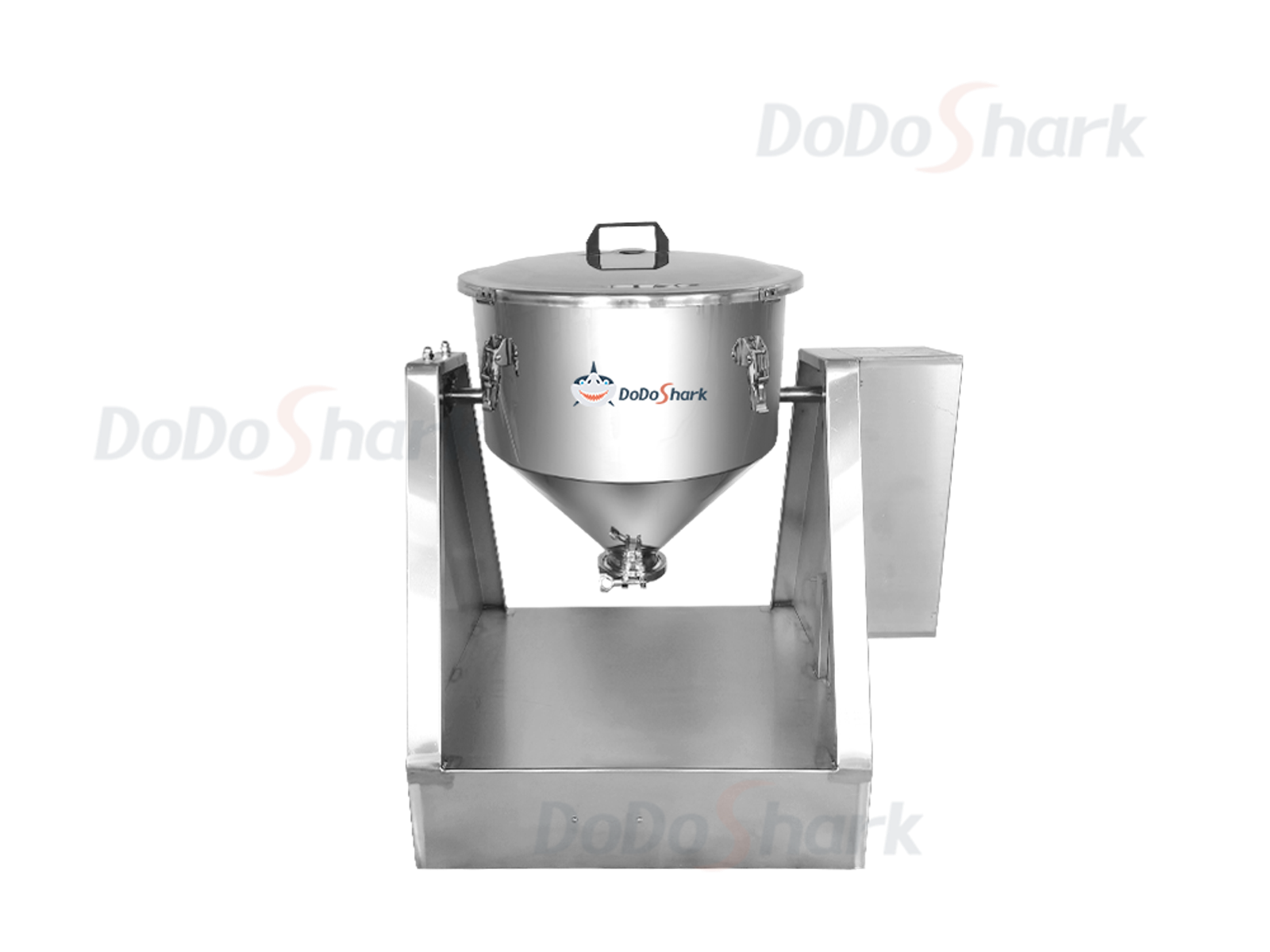

①Lab Edition: Premium configuration with a higher price point. ②Standard: SS304 tank (single cone) + SS304 frame (with VFD speed control). ③Load Capacity: Suitable for bulk density ≤ 1 kg/L. ④All models utilize gear reducers. ⑤Integrated control panel: Buttons + Timer + VFD. ⑥Ultra-Quiet: Noise level < 75 dB, quieter than human speech ⑦Newly designed intensifier blades for shorter mixing time and better dispersion.
5L 10L 20L 30L 60L 100L

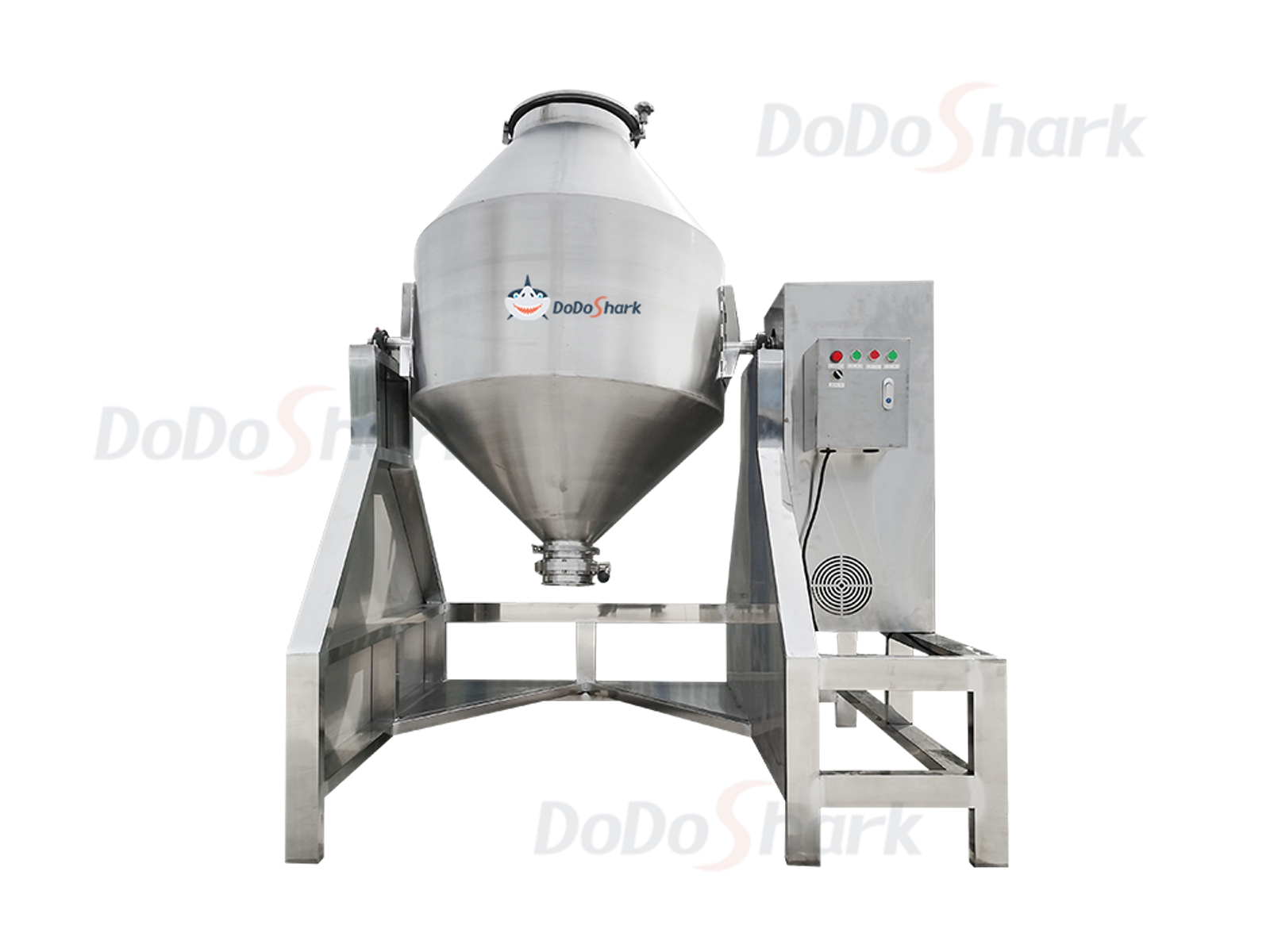

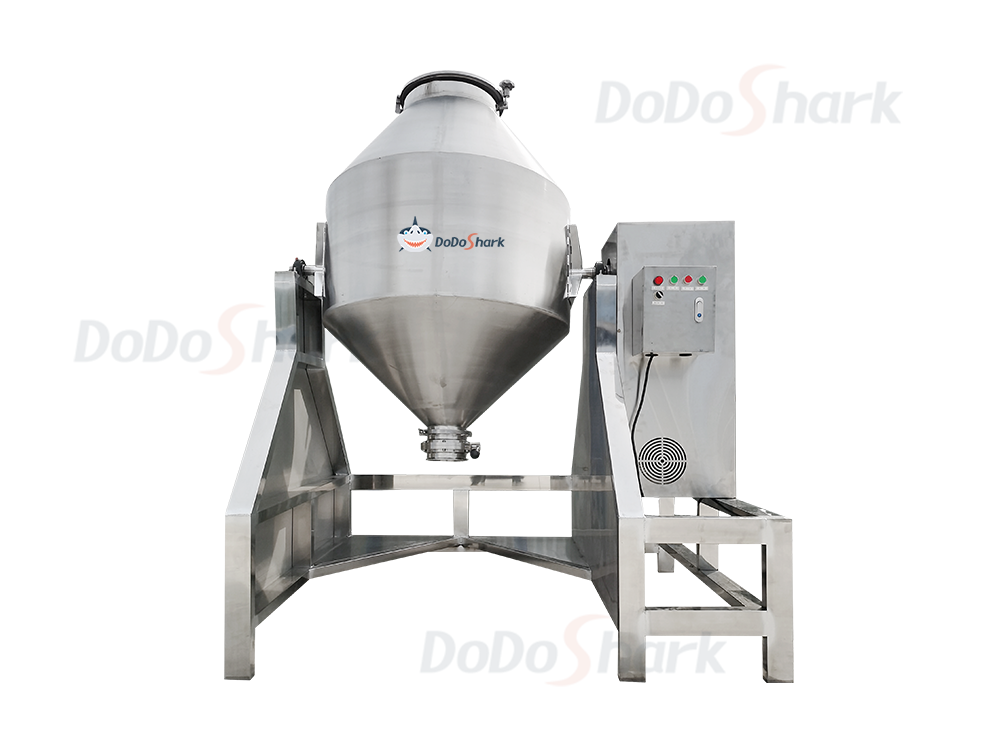

600L+ Large-Capacity Models: Empowering Your Productivity
①Large-Scale Edition: Volumes exceeding 600L. ②Standard: SS201 tank + Steel frame (customizable). ③Load Capacity: Configured based on material bulk density. ④All models utilize gear reducers. ⑤Integrated electrical cabinet: Buttons + Timer + VFD (optional). ⑥Multiple intensifier blade options, shorter mixing time, better dispersion.n.
600L 800L 1000L 1500L 2000L 3000L 5000L 8000L 10m³
Loading Factor: 10% – 50% for all models. Special high-density materials or requirements are supported for customization.
| Series | Model Volume | Maximum Loading Capacity (L/kg) | Motor power (kW) | Tank wall thickness (mm) | Outlet Port | Dimension （CM) |
|---|---|---|---|---|---|---|

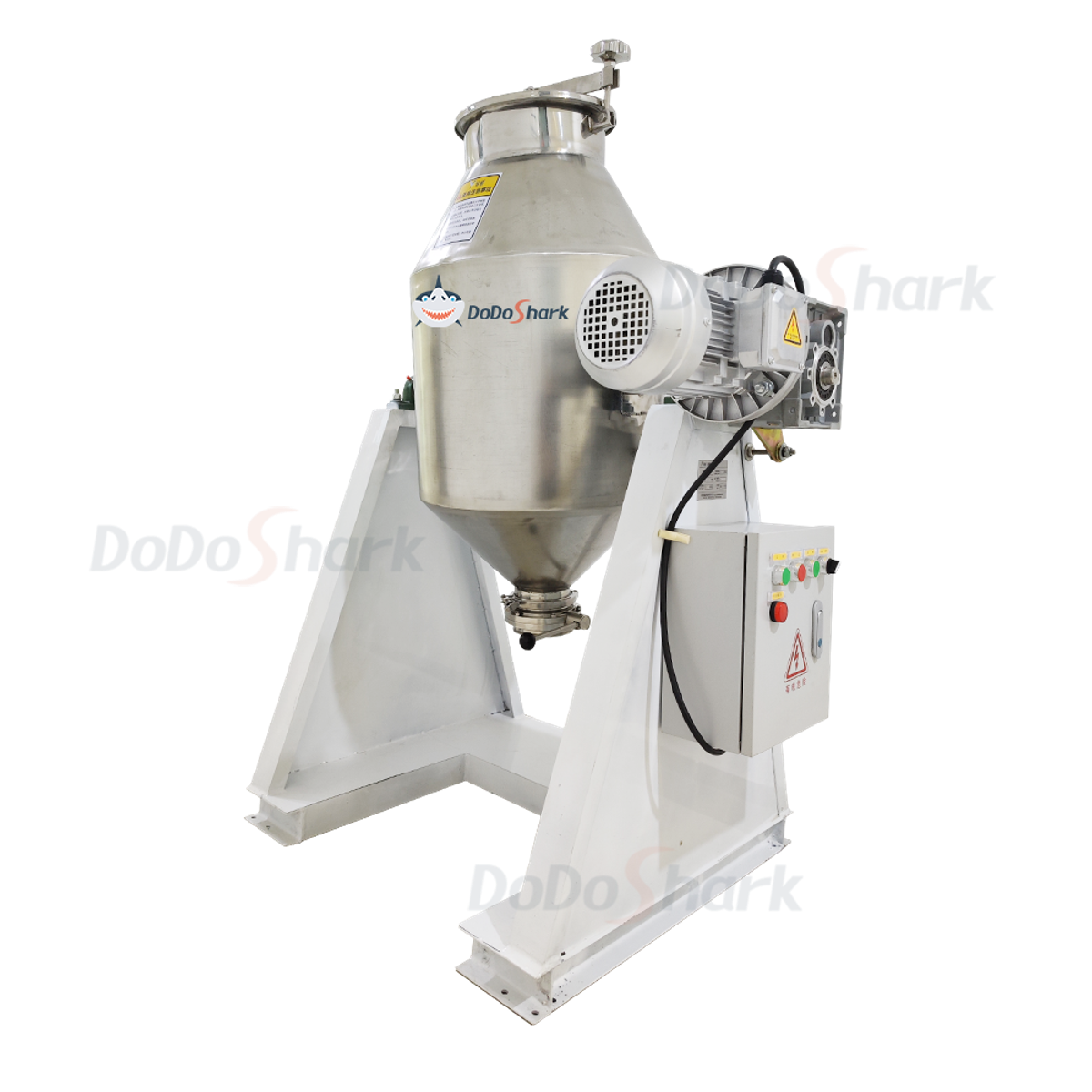

| Standard | 100L | 50L/50KG | 0.75 | 1.5 | #108 Butterfly Valve | 100*75*150 |

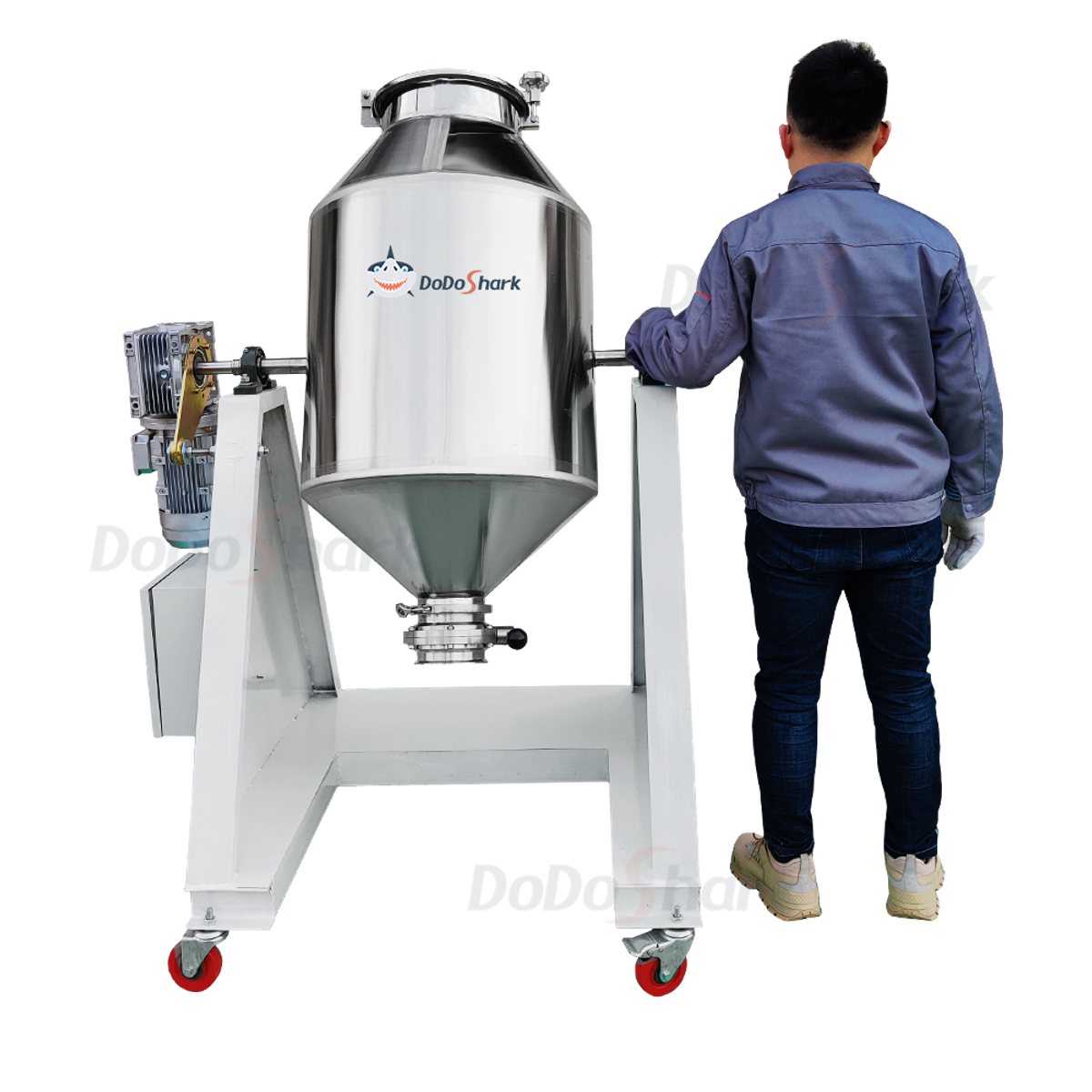

| Standard | 200L | 100L/100KG | 1.5 | 1.5 | #133 Butterfly Valve | 125*90*160 |

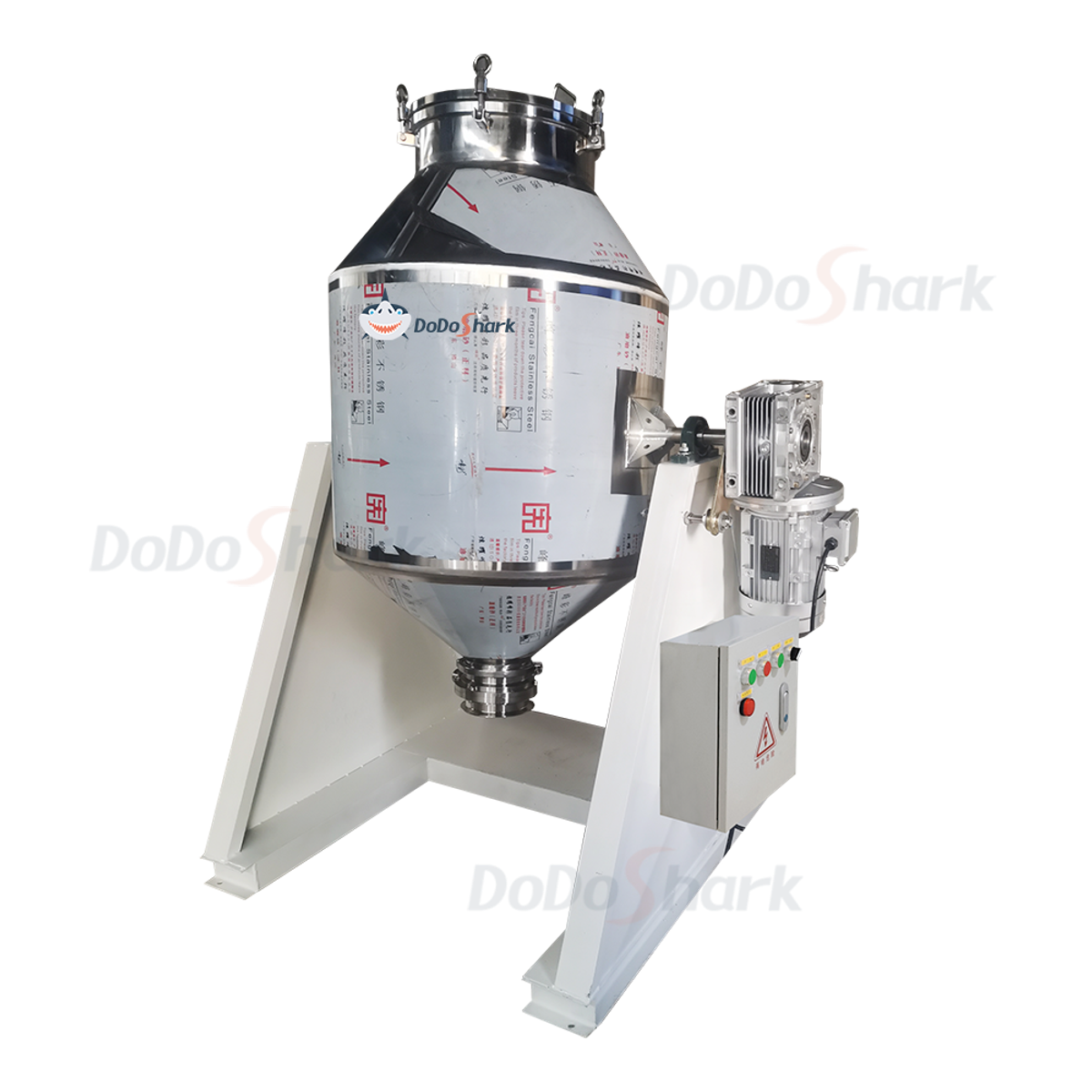

| Standard | 400L | 200L/200KG | 3 | 2 | #159 Butterfly Valve | 143*110*180 |
| Heavy-Duty | 100L | 50L/100KG | 0.75 | 1.5 | #108 Butterfly Valve | 118*70*150 |
| Heavy-Duty | 200L | 100L/200KG | 1.5 | 2 | #133 Butterfly Valve | 142*90*170 |
| Heavy-Duty | 400L | 200L/300KG | 2.2 | 2 | #159 Butterfly Valve | 160*110*170 |
| Laboratory | 5L | 2.5L/5KG | 60W | 1.75 | 70 Blind Plate | 53*38*60 |
| Laboratory | 10L | 5L/10KG | 60W | 1.75 | 70 Blind Plate | 53*38*67 |
| Laboratory | 20L | 10L/20KG | 120W | 1.75 | #76 Butterfly Valve | 58*38*72 |
| Laboratory | 30L | 15L/30KG | 250W | 1.75 | #76 Butterfly Valve | 70*48*80 |
| Laboratory | 60L | 30L/30KG | 750W | 1.75 | #108 Butterfly Valve | 98*60*130 |
| Laboratory | 100L | 50L/50KG | 750W | 1.75 | #108 Butterfly Valve | 98*60*135 |
| Large-Scale | 600L | 300L/300KG | 3W | 2 | #159 Butterfly Valve | 177*135*205 |
| Large-Scale | 800L | 400L/400KG | 3W | 2 | #159 Butterfly Valve | 206*135*230 |
| Large-Scale | 1000L | 500L/500KG | 5.5W | 3 | #219 Butterfly Valve | 195*195*250 |
| Large-Scale | 1500L | 750L/1 T | 7.5W | 3.5 | #219 Butterfly Valve | 230*220*270 |
| Large-Scale | 2000L | 750L/1.5 T | 11W | 4 | #273 Butterfly Valve | 240*230*300 |
RPM Description: Lab Series: Max 1–33 RPM (Adjustable). Heavy-Duty Series: Max 18 RPM. Standard / Large-Scale Series: Max 12–15 RPM.
| Property or Function | Optional Upgrade Configuration |
|---|---|
| Tank Material | 304/316 Stainless Steel |

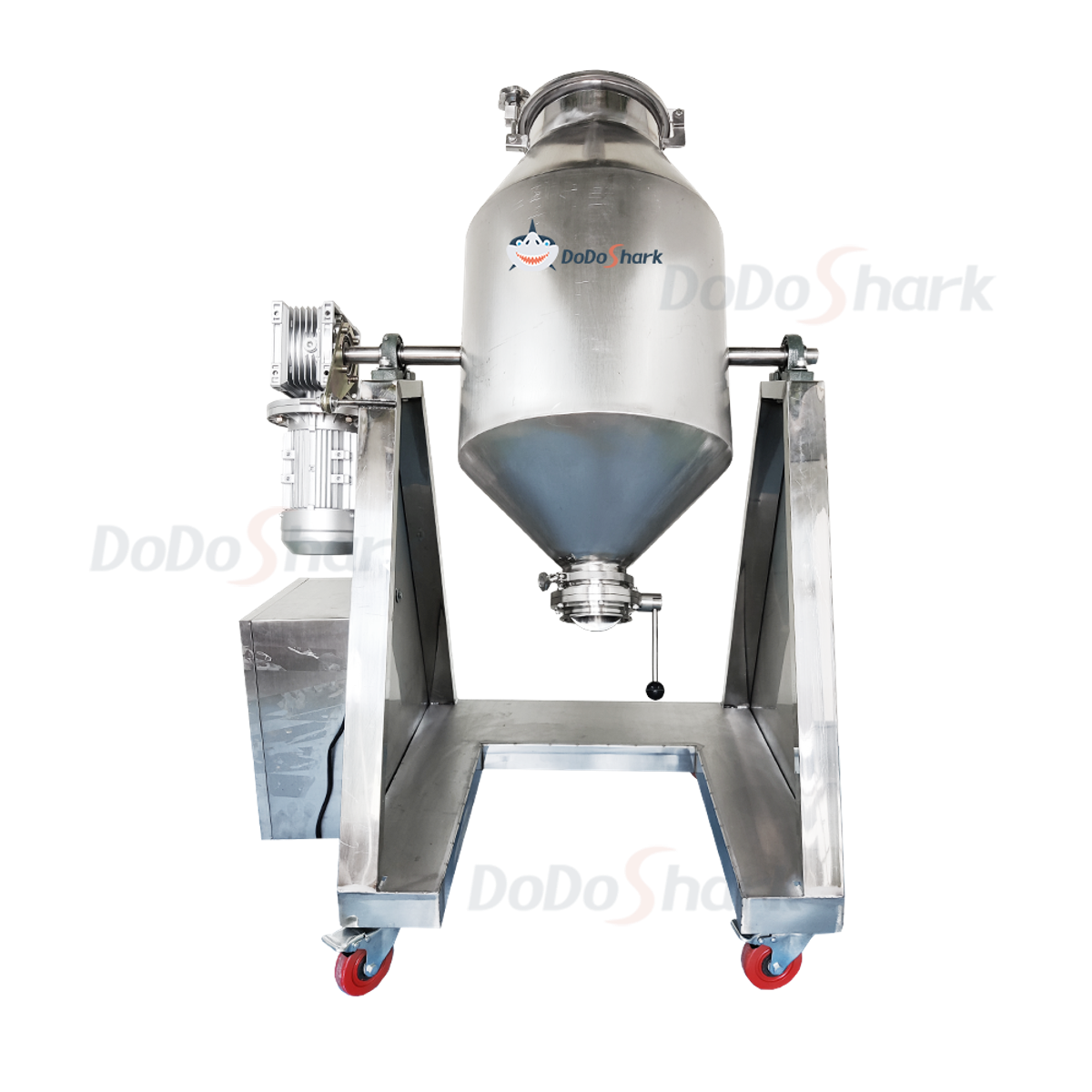

| Bracket Material | 201/304 Stainless Steel |
| Feed Port | High pressure manhole cover |
| Outlet Port | Large diameter butterfly valve |
| Electrical Components | All models are optional variable speed inverter |
| Reduction Box | High-density materials can be upgraded |
| Spray and Mist Function | Optional |
Larger models can be customized according to customer requirements.
